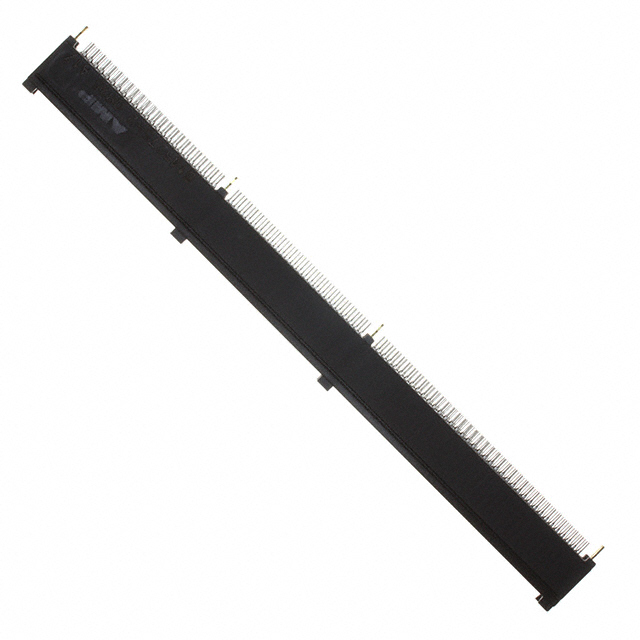

5145275-2
CONN NLX FMALE 340POS 0.100 GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
340 Position Female Connector NLX Gold 0.100"" (2.54mm) Brown
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Gold |
| Color | Brown |
| Mounting Type | Through Hole |
| Number of Positions | 340 |
| Pitch | 0.100"" (2.54mm) |
| Operating Temperature | 0°C ~ 85°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | NLX |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder, Staggered |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | 74; 48; 48 |
| Number of Rows | 2 |
