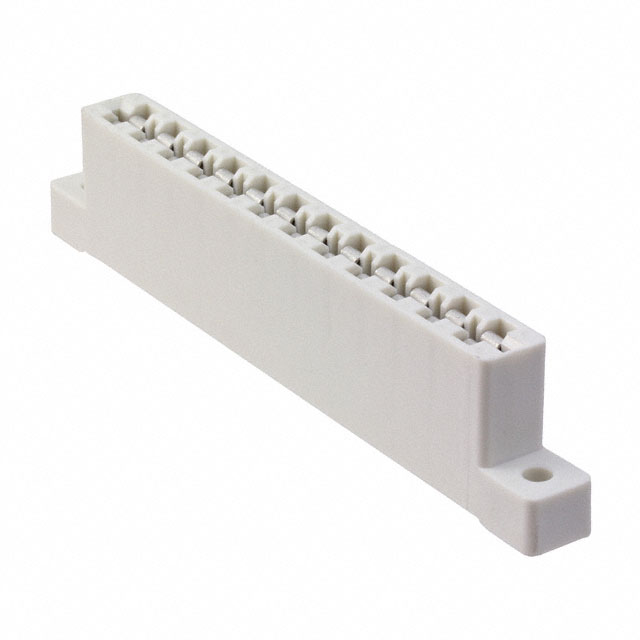

5-531353-9
CONN EDGE DUAL FML 24POS 0.312Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
The TE Connectivity AMP Connectors 5-531353-9 is a 24-position, dual-row female edge card connector with a 0.312" (7.92mm) pitch. This naturally colored connector features a tin contact finish with a thickness of 15.0µin (0.38µm) over a copper alloy contact material. Designed for panel mounting with a flush mount flange, it accommodates a card thickness of 0.062" (1.57mm). The connector operates within a temperature range of -40°C to 95°C and is supplied in bulk packaging. This component is utilized in industrial and telecommunications applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Natural |
| Mounting Type | Panel Mount |
| Number of Positions | 24 (Power) |
| Pitch | 0.312"" (7.92mm) |
| Operating Temperature | -40°C ~ 95°C |
| Read Out | Single |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.156"" (3.96mm) Dia |
| Termination | Solder |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
