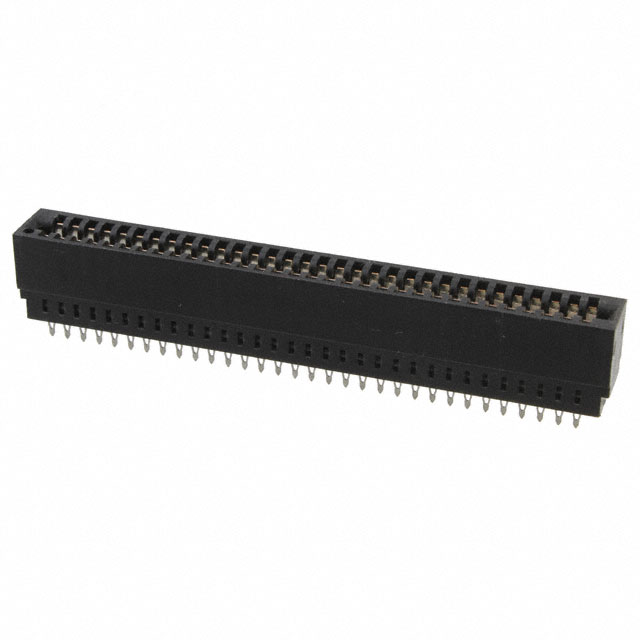

3-5147490-2
CONN EDGE DUAL FMALE 64POS 0.100Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors Next Generation PACE series 64-position dual female edge card connector, part number 3-5147490-2. This through-hole mounted connector features a 0.100" (2.54mm) pitch and is designed for card thicknesses ranging from 0.054" to 0.070" (1.37mm to 1.78mm). The contact material is phosphor bronze with a 30.0µin (0.76µm) gold plating for enhanced conductivity and durability. Supplied in bulk packaging, this black connector is suitable for applications in the telecommunications and computing industries.
Additional Information
Series: Next Generation PACERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Pitch | 0.100"" (2.54mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054"" ~ 0.070"" (1.37mm ~ 1.78mm) |
| Flange Feature | - |
| Termination | Press-Fit |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

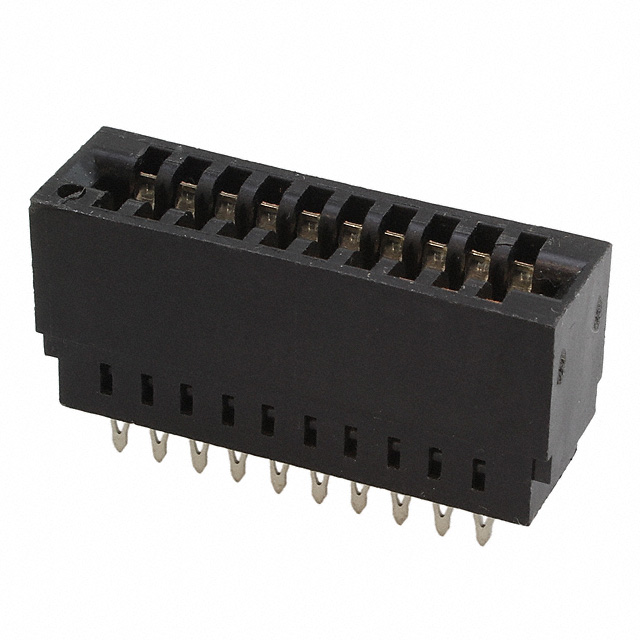

1-5147490-0
