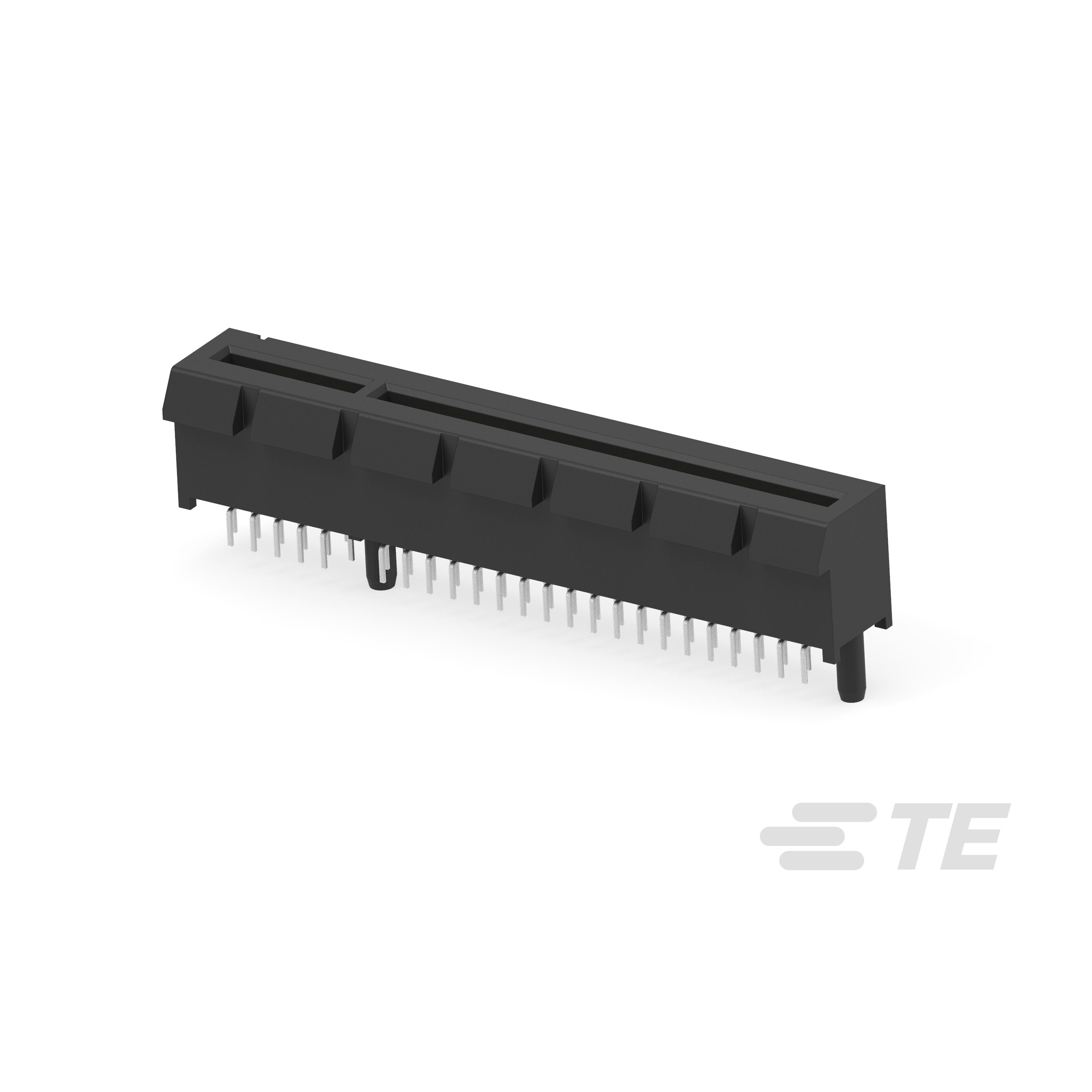

3-2362375-3
PCIE GEN4, 98POS ,G/F ,DIP ,3.1MManufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
98 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Locking Ramp |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 98 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | FLASH |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | 11; 38 |
| Number of Rows | 2 |
