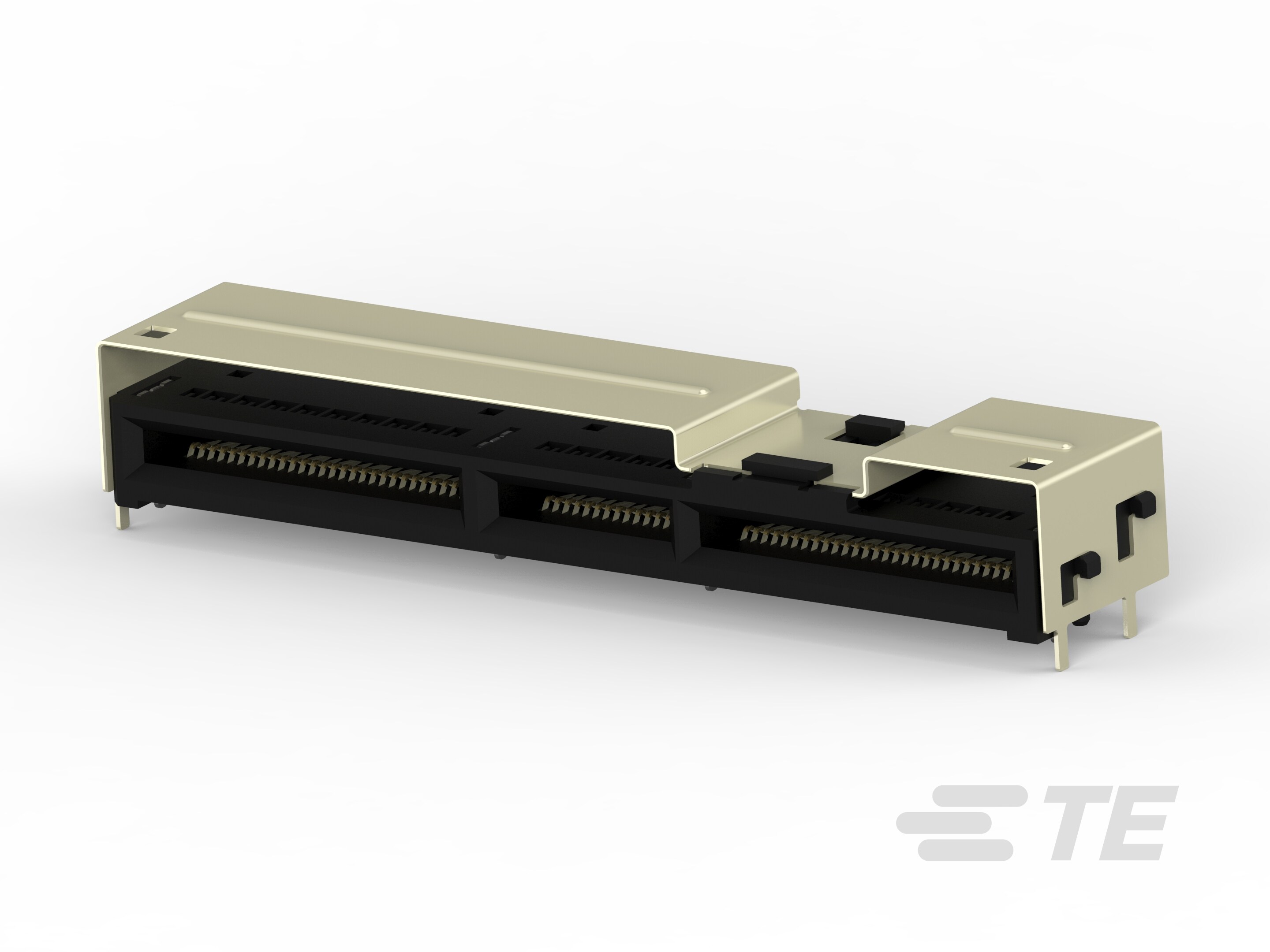

2332205-4
RECEPT ASSY, RA, 140 POS, SLIVERManufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
140 Position Female Connector Non Specified - Dual Edge Gold 0.024"" (0.60mm) Black
Additional Information
Series: Sliver 2.0RoHS Status: RoHS CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Strip |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 140 |
| Pitch | 0.024"" (0.60mm) |
| Operating Temperature | -55°C ~ 105°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | FLASH |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 28; 14; 28 |
| Number of Rows | 2 |
