2199125-8
CONN M.2 FMALE 67POS 0.020 GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More

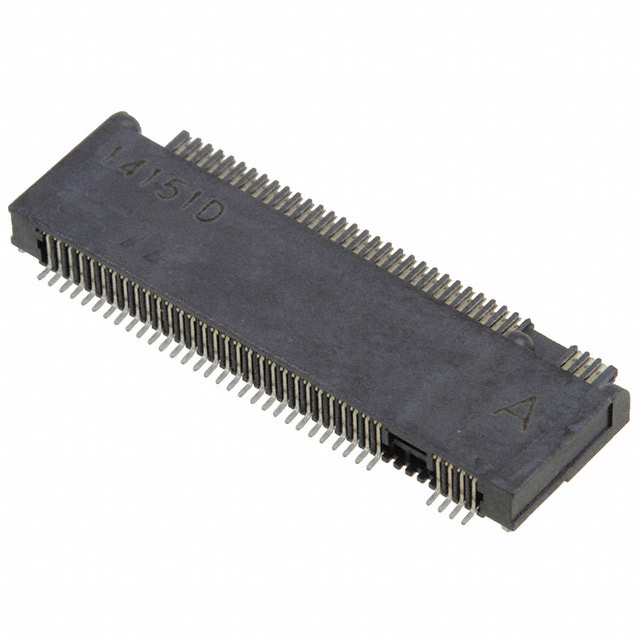

TE Connectivity AMP Connectors’ 67-position female M.2 (NGFF) connector, part number 2199125-8, is designed for surface mount, right-angle applications. This black connector features a 0.020" (0.50mm) pitch and a dual read-out configuration. The contacts, constructed from copper alloy, are plated with 15.0µin (0.38µm) of gold for enhanced conductivity and durability. This component is suitable for use in the computing and telecommunications industries, facilitating high-speed data transfer in compact form factors. It is supplied on tape and reel for automated assembly processes and includes a board guide feature for precise alignment during installation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | - |
| Card Type | M.2 (NGFF) Mini Card |
| Card Thickness | - |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
