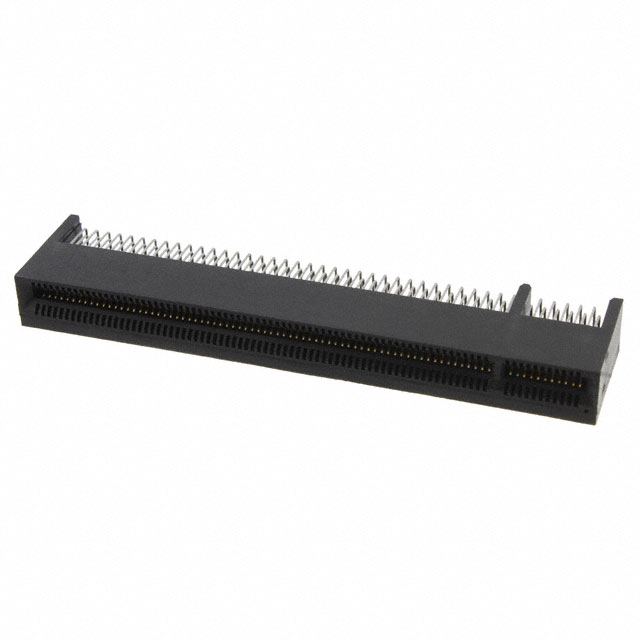

2-1761465-4
CONN PCI EXP FMALE 164POS 0.039Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
164 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 164 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
Request a Quote
