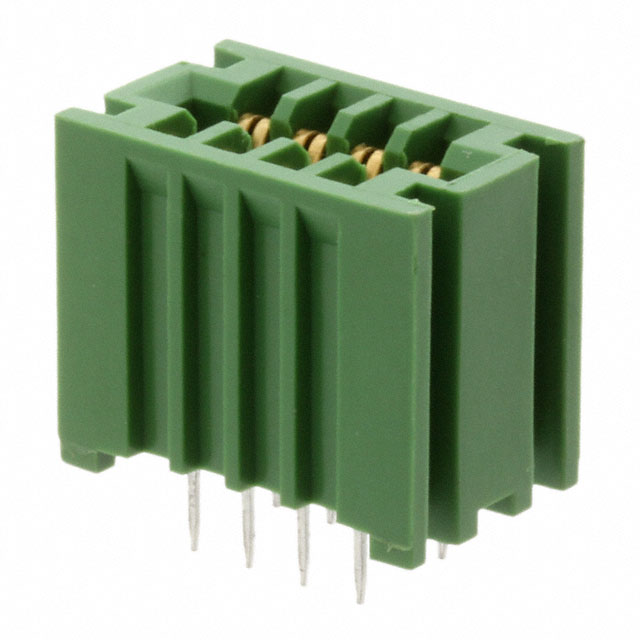

166087-4
CONN EDGE DUAL FMALE 8POS 0.100Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
8 Position Female Connector Non Specified - Dual Edge Gold 0.100"" (2.54mm) Green
Additional Information
Series: AMP EDGE Type IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Gender | Female |
| Contact Finish | Gold |
| Color | Green |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Pitch | 0.100"" (2.54mm) |
| Operating Temperature | -55°C ~ 125°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.057"" ~ 0.072"" (1.45mm ~ 1.82mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | 4 |
| Number of Rows | 2 |
