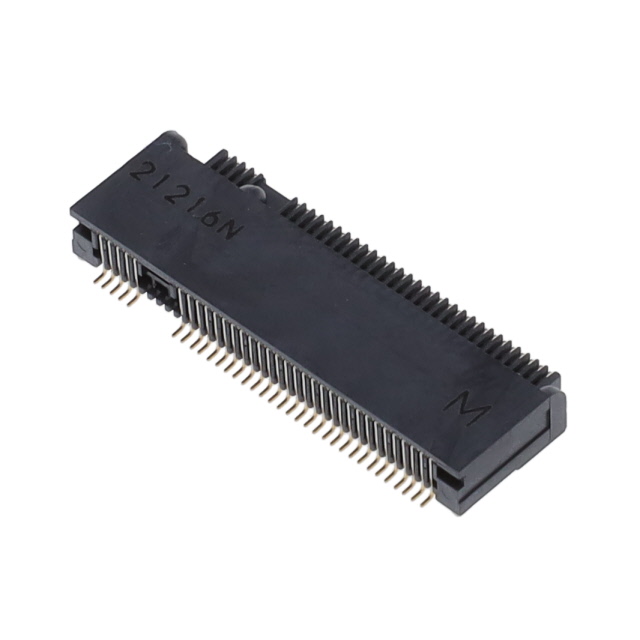

1-2199119-6
CONN M.2 FMALE 67POS 0.020 GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020"" (0.50mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -40°C ~ 80°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | M.2 (NGFF) Mini Card |
| Card Thickness | - |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
