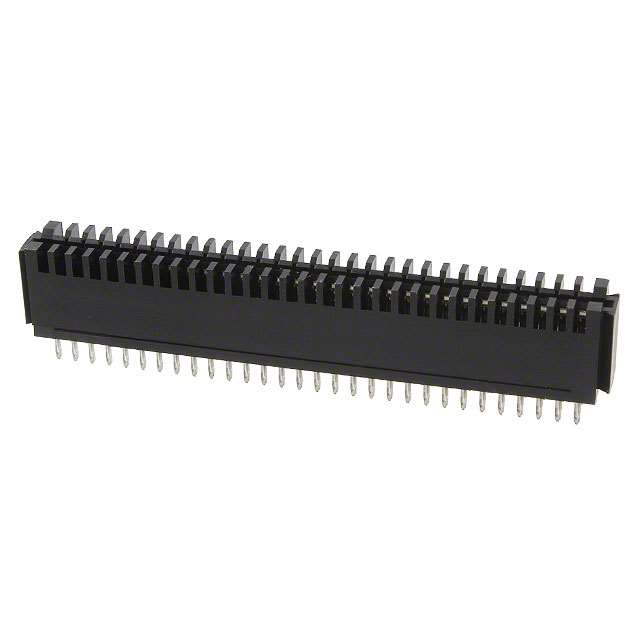

1-119738-6
CONN EDGE DUAL FMALE 60POS 0.100Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors AMP PACE Series 1-119738-6 is a 60-position dual female edge card connector with a 0.100" (2.54mm) pitch. This through-hole mounted component features gold-plated cantilever contacts made of phosphor bronze, with a contact finish thickness of 30.0µin (0.76µm). Designed for card thicknesses ranging from 0.054" to 0.071" (1.37mm to 1.80mm), it offers a press-fit termination for robust connection. The connector is supplied in tube packaging and is suitable for applications in telecommunications, industrial automation, and consumer electronics where reliable board-to-board interfacing is critical.
Additional Information
Series: AMP PACERoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Pitch | 0.100"" (2.54mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054"" ~ 0.071"" (1.37mm ~ 1.80mm) |
| Flange Feature | - |
| Termination | Press-Fit |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
