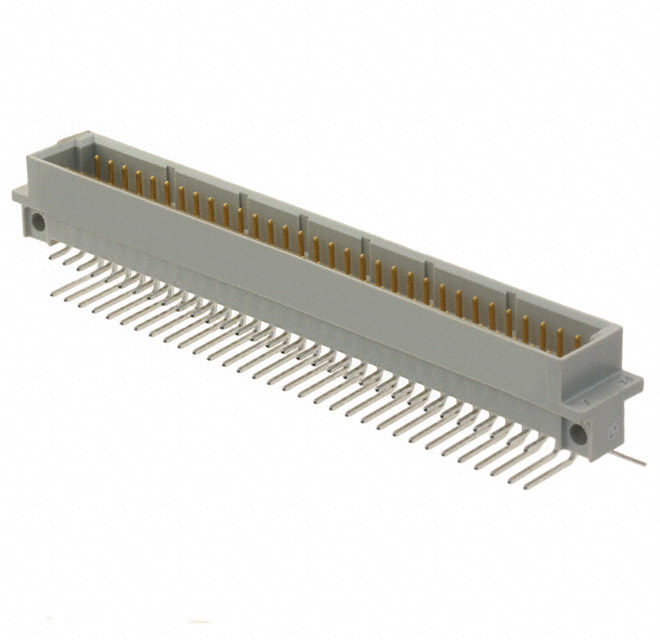

9-1393644-7
CONN DIN PLUG 96POS PCB RA GOLDManufacturer: TE Connectivity AMP Connectors
Categories: DIN 41612
Quality Control: Learn More
TE Connectivity AMP Connectors Eurocard series DIN 41612 connector, part number 9-1393644-7. This right-angle plug features 96 positions with male pins and a 2.54mm pitch. The contact finish is gold or gold-palladium, suitable for high-reliability applications. Designed for PCB mounting via through-hole termination with a solder style. This component is commonly utilized in telecommunications, industrial automation, and test and measurement equipment. It offers a 3-row configuration with 32 loaded positions, adhering to Style C specifications. The connector is supplied in tray packaging.
Additional Information
Series: EurocardRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | 32 |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 3 |
