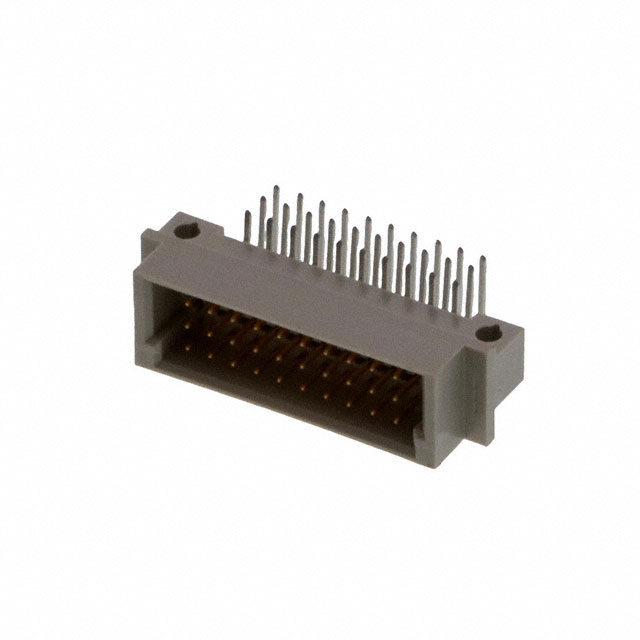

6-1393644-9
CONN DIN PLUG 30POS PCB RA GOLDManufacturer: TE Connectivity AMP Connectors
Categories: DIN 41612
Quality Control: Learn More
TE Connectivity AMP Connectors Eurocard series connector, part number 6-1393644-9. This 30-position DIN plug features a right-angle, through-hole mounting style with male pins. The contact finish is Gold or Gold-Palladium, offering excellent conductivity and corrosion resistance. Designed with a 2.54mm pitch, this connector conforms to the DIN 41612 standard, specifically the C/3 (1/3 C) style. It is suitable for applications requiring robust and reliable interconnects in telecommunications, industrial automation, and computing systems. The connector is supplied in tray packaging.
Additional Information
Series: EurocardRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.100"" (2.54mm) |
| Style | C/3 (1/3 C) |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 3 |
