6-1393644-3
CONN DIN PLUG 64POS PCB RA GOLDManufacturer: TE Connectivity AMP Connectors
Categories: DIN 41612
Quality Control: Learn More

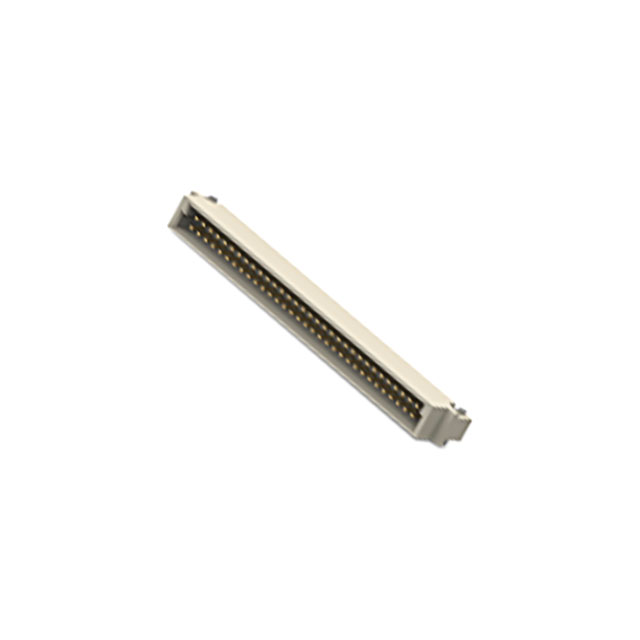

TE Connectivity AMP Connectors Eurocard series 6-1393644-3 is a 64-position DIN 41612 connector plug. This right-angle, through-hole mounted component features male pins with a gold or gold-palladium contact finish for superior conductivity and corrosion resistance. Designed with a 2.54mm pitch, it conforms to the Eurocard standard, specifically Style B, and supports a 2-row configuration where all 64 positions are loaded. The integrated board lock feature ensures secure mounting to the PCB. This connector is suitable for applications in industrial automation, telecommunications, and data processing equipment.
Additional Information
Series: EurocardRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 64 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 2 |
