536432-5
CONN DIN RCPT 48POS PCB RA GOLDManufacturer: TE Connectivity AMP Connectors
Categories: DIN 41612
Quality Control: Learn More

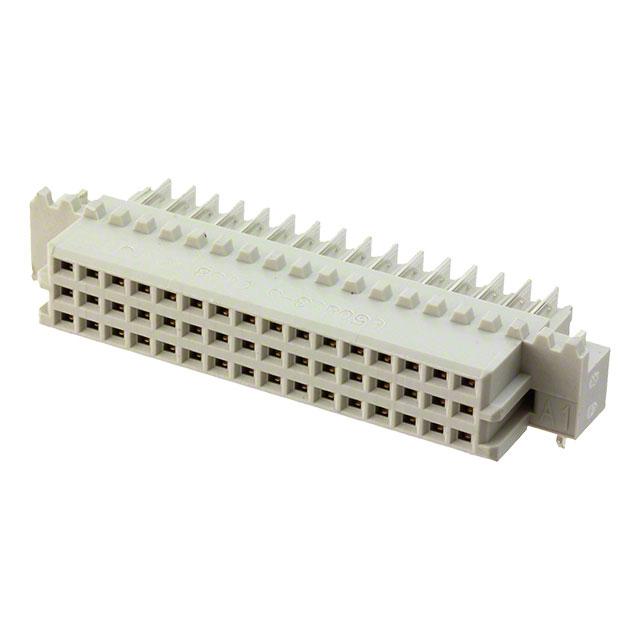

TE Connectivity AMP Connectors Eurocard series DIN receptacle, part number 536432-5. This 48-position, right-angle PCB mount connector features female sockets with a gold contact finish and through-hole termination. Designed to meet DIN 41612 specifications, specifically the R/2 style, it offers three rows with all positions loaded. The component includes board lock features for enhanced mechanical stability. This connector is commonly utilized in telecommunications, industrial automation, and data processing equipment where robust and reliable interconnectivity is paramount. It is supplied in bulk packaging.
Additional Information
Series: EurocardRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Pitch | 0.100"" (2.54mm) |
| Style | R/2 (1/2 R) |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 3 |
