536149-5
CONN DIN HDR 96POS PCB RA GOLDManufacturer: TE Connectivity AMP Connectors
Categories: DIN 41612
Quality Control: Learn More

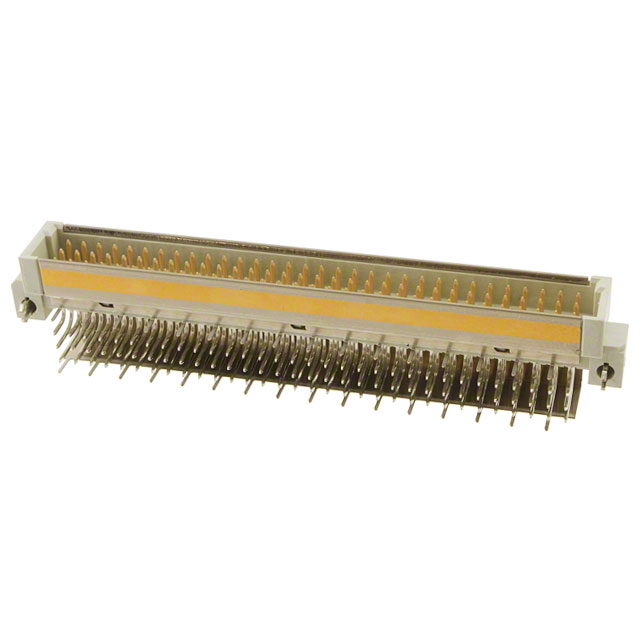

TE Connectivity AMP Connectors Eurocard series DIN 41612 connector, part number 536149-5, is a 96-position right-angle PCB header with male pins. Featuring a gold contact finish for enhanced conductivity and durability, this connector is designed for reliable solder termination. The header incorporates board lock functionality and is shielded, making it suitable for demanding applications. With a 2.54mm pitch and arranged in three rows in a Style C configuration, it offers high-density interconnectivity. This component is widely utilized in industrial automation, telecommunications, and computing systems where robust and high-performance board-to-board connections are critical. The component is supplied in bulk packaging.
Additional Information
Series: EurocardRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Shielded |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 3 |
