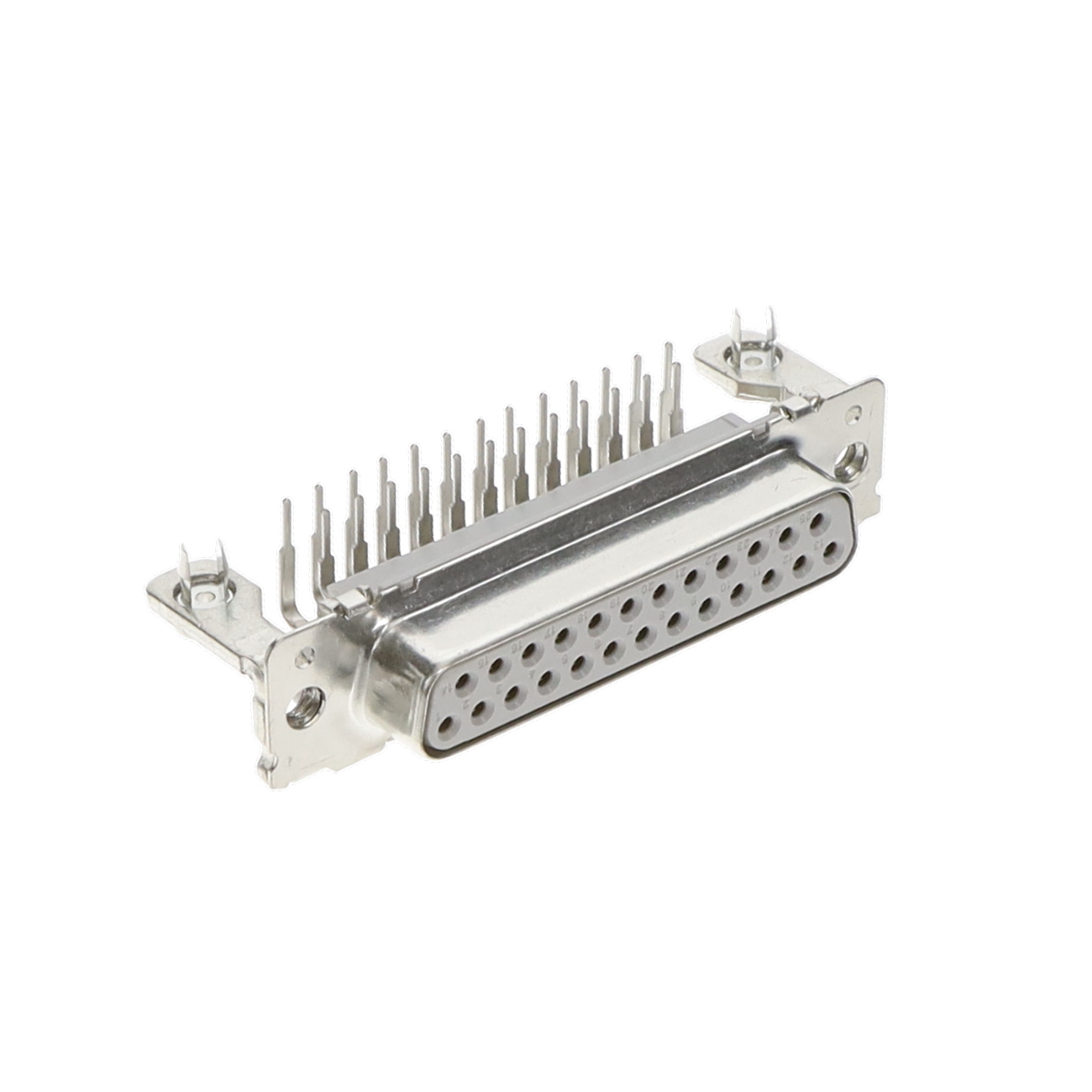

CONN D-SUB RCPT 25POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors AMPLIMITE HD-20 series receptacle, part number 8-1393480-3, offers a 25-position, dual-row D-Sub configuration with female signal contacts. This right-angle, through-hole mount connector features a solder termination and a gold contact finish with a 30.0µin thickness for reliable signal integrity. The connector's steel shell is tin-plated and includes a housing/shell flange with 4-40 screw threading for secure mounting. It is rated for 2.2A current and is constructed from UL94 V-0 rated material for enhanced safety. The backset spacing is 0.371 inches (9.43mm). This component is commonly utilized in industrial automation, data communication, and medical equipment applications.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: Vendor undefinedManufacturer Lead Time: 26 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 2.2A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Backset Spacing | 0.371"" (9.43mm) |
