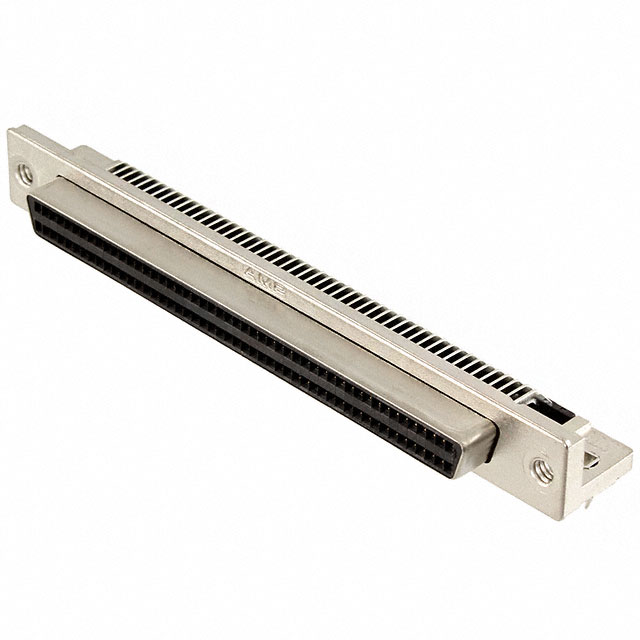

787170-9
CONN D-TYPE RCPT 100POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
100 Position D-Type Receptacle, Female Sockets Connector
Additional Information
Series: AMPLIMITE .050 IIIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Shielded |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 1A |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Type |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Backset Spacing | 0.146"" (3.71mm) |
