7-1393740-8
CONN D-SUB PLUG 9POS VERT SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

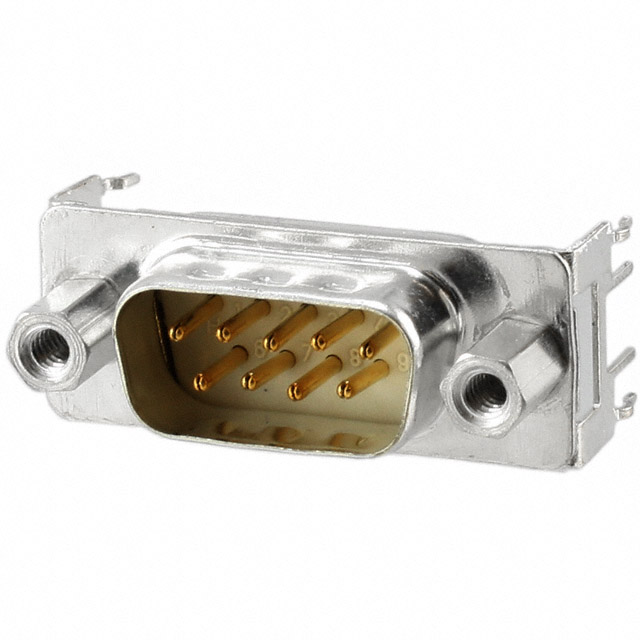

TE Connectivity AMP Connectors AMPLIMITE HD-20 Series 7-1393740-8 is a 9-position D-Sub plug connector with male pins. This through-hole mounted component features a solder termination and gold-plated signal contacts. The connector boasts a steel, tin-plated shell with a UL94 V-0 material flammability rating. Integrated features include a ground strap and grounding indents for enhanced signal integrity. The DE (E) shell size accommodates a 2-row layout. It is suitable for applications requiring reliable signal connections in industries such as industrial automation and telecommunications. The connector is supplied in tray packaging.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Ground Strap, Grounding Indents |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | - |
