5786534-1
CONN D-SUB PLUG 37P VERT PRESSManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

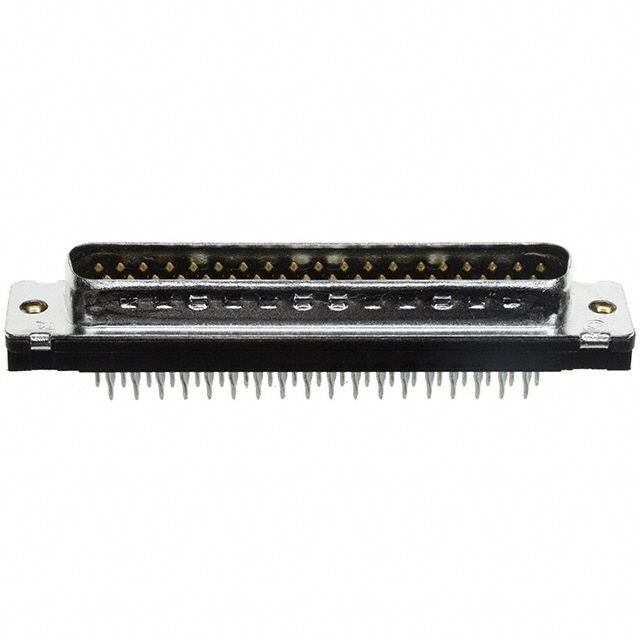

TE Connectivity AMP Connectors AMPLIMITE HD-20 series 5786534-1 is a 37-position D-Sub plug connector. This component features male pins with gold contact finish for signal transmission. The connector has a vertical mounting type for through-hole termination via a press-fit method. It includes grounding indents and a steel, tin-plated shell with a housing/shell flange accommodating 4-40 hardware. The Material Flammability Rating is UL94 V-0. This D-Sub connector is utilized in industrial automation, medical equipment, and telecommunications sectors.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Press-Fit |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 4 (DC, C) |
| Backset Spacing | - |
