5749892-1
CONN D-SUB PLUG 50P VERT PRESSManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

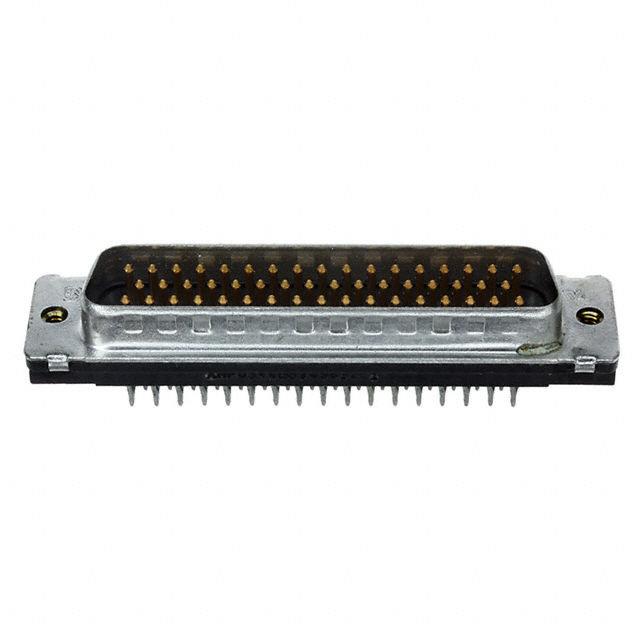

TE Connectivity AMP Connectors AMPLIMITE HD-20 Series 5749892-1 is a 50-position, male pin D-subminiature plug connector. This vertical, through-hole mounted component features a standard D-Sub connector style with a shell size of 5 (DD, D) and a steel, tin-plated shell. The connector incorporates grounding indents and a 4-40 flange feature for secure mounting. It utilizes 50 signal contacts with a gold finish. The termination method is press-fit, ensuring robust mechanical and electrical connections. The housing is rated UL94 V-0 for material flammability. This connector is suitable for applications in the telecommunications and industrial automation sectors.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Press-Fit |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 5 (DD, D) |
| Backset Spacing | - |
