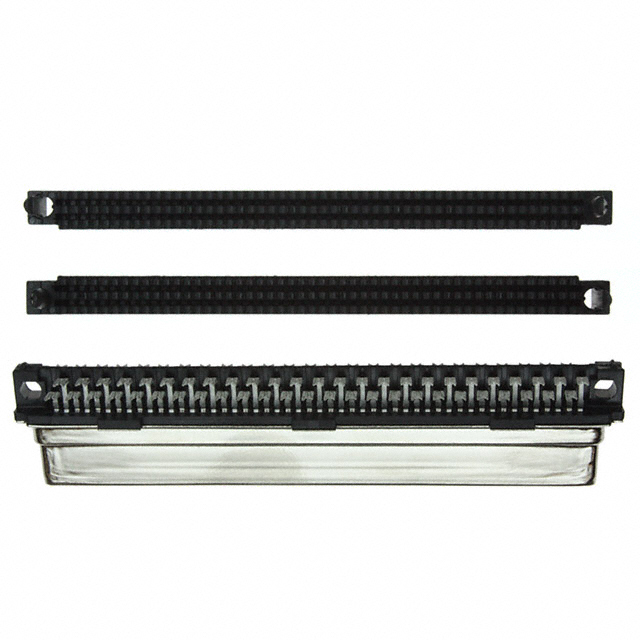

5749699-8
CONN D-TYPE RCPT 100POS IDCManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors AMPLIMITE .050 III series connector, part number 5749699-8. This 100-position D-Type receptacle features female sockets with gold contact finish for optimal signal integrity. Designed with a .050 pitch and a shielded steel, nickel-plated shell, this connector is suitable for IDC termination with ribbon cable. Its UL94 V-0 material flammability rating makes it a reliable choice for demanding applications. The AMPLIMITE .050 III connector series is commonly utilized in industrial automation, telecommunications infrastructure, and advanced computing systems requiring high-density, reliable signal connections. This free-hanging (in-line) mounted component offers a 1A current rating and is supplied in bulk packaging.
Additional Information
Series: AMPLIMITE .050 IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 1A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | - |
| Termination | IDC, Ribbon Cable |
| Ingress Protection | - |
| Connector Style | D-Type |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Backset Spacing | - |
