5749084-9
CONN D-TYPE PLUG 100POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

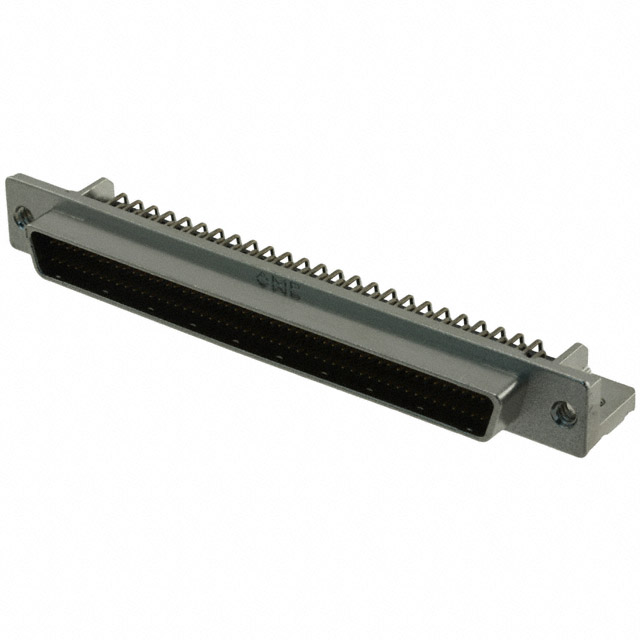

TE Connectivity AMP Connectors AMPLIMITE .050 III series plug, part number 5749084-9, is a 100-position D-Type connector with male pins. This right-angle, through-hole mounted component features a 0.050 pitch and 0.100 row-to-row spacing, with a shielded design. The signal contacts are finished with gold for enhanced conductivity and reliability. This connector is suitable for applications requiring high density signal connections, commonly found in industrial automation, telecommunications, and medical equipment. The UL94 V-0 rated housing ensures material safety, and it is supplied in tube packaging.
Additional Information
Series: AMPLIMITE .050 IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Tube |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Type |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | - |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Backset Spacing | - |
