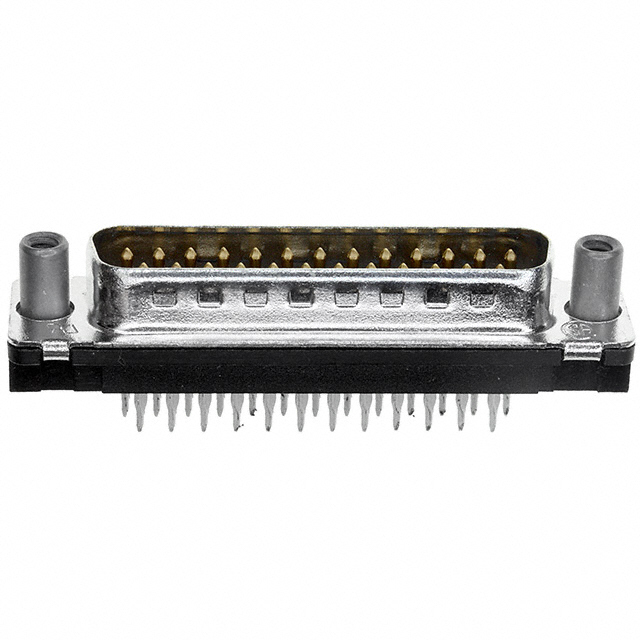

CONN D-SUB PLUG 25P VERT PRESSManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors AMPLIMITE HD-20 Series CONN D-SUB PLUG 25P VERT PRESS, part number 5748146-6, is a 25-position D-subminiature connector assembly. This plug features male pins with a gold contact finish, suitable for signal applications. The connector is designed for through-hole mounting with a vertical orientation. It incorporates grounding indents and a female screwlock flange feature for secure mating. The shell is constructed from tin-plated steel, and the overall connector layout conforms to the DB, B standard. Termination is achieved via a press-fit method. The material boasts a UL94 V-0 flammability rating. This component is commonly utilized in industrial, telecommunications, and data acquisition systems.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Press-Fit |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Backset Spacing | - |
