5747838-6

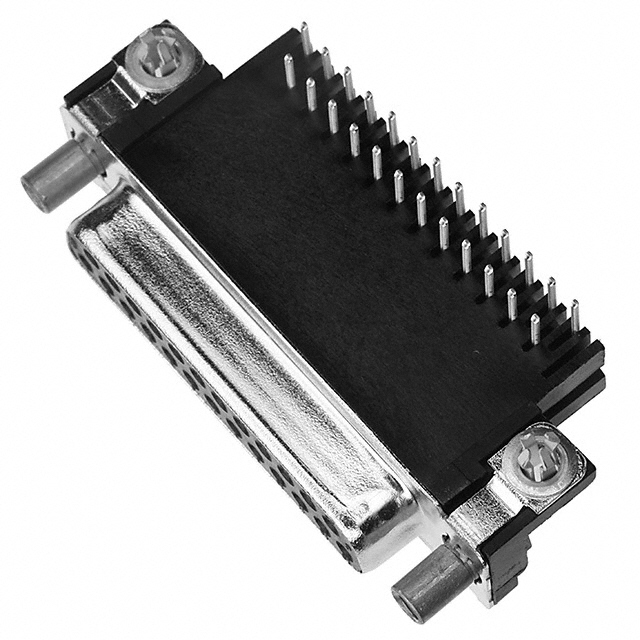

CONN D-SUB RCPT 25POS R/A SLDR

Manufacturer: TE Connectivity AMP Connectors

Categories: D-Sub Connector Assemblies

Quality Control: Learn More

25 Position D-Sub Receptacle, Female Sockets Connector

Additional Information

Series: AMPLIMITE HD-20RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:
Technical Details:
FeaturesBoard Lock, Ground Strap
PackagingTube
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Current Rating (Amps)6A
Mounting TypeThrough Hole, Right Angle
Number of Positions25
Number of Rows2
Contact TypeSignal
Flange FeatureMating Side, Female Screwlock (4-40)
TerminationSolder
Ingress Protection-
Connector StyleD-Sub
Contact Finish Thickness30.0µin (0.76µm)
Material Flammability RatingUL94 V-0
Shell Material, FinishSteel, Tin Plated
Shell Size, Connector Layout3 (DB, B)
Backset Spacing0.590"" (14.99mm)
