5745440-1
CONN D-SUB RCPT 25POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

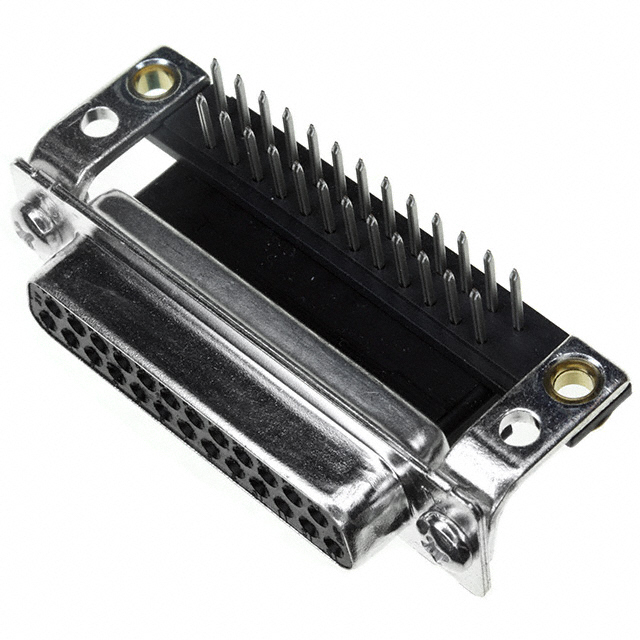

25 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: AMPLIMITE HDP-20RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Brackets |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 6A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Standard Screws |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Backset Spacing | 0.454"" (11.53mm) |
