4-1393480-8
CONN D-SUB RCPT 15POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

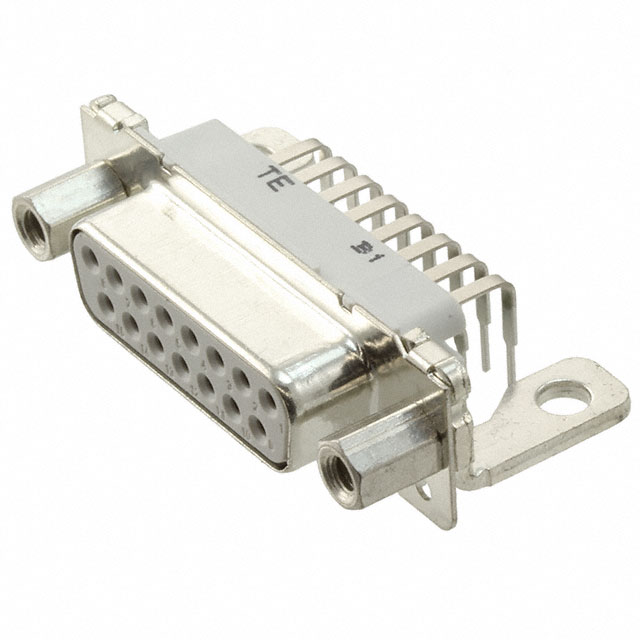

TE Connectivity AMP Connectors AMPLIMITE HD-20 Series 4-1393480-8 is a 15-position D-Sub receptacle connector with female signal sockets. This right-angle, through-hole mount component features gold contact finish for reliable signal integrity and a current rating of 2.2A. The steel shell is tin-plated, and the connector includes a mating side female screwlock with 4-40 thread. The shell size and layout conform to the 2 (DA, A) standard. Designed for robust performance, this component is suitable for applications in industrial automation, telecommunications, and consumer electronics. The connector material boasts a UL94 V-0 flammability rating.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 2.2A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
| Backset Spacing | - |
