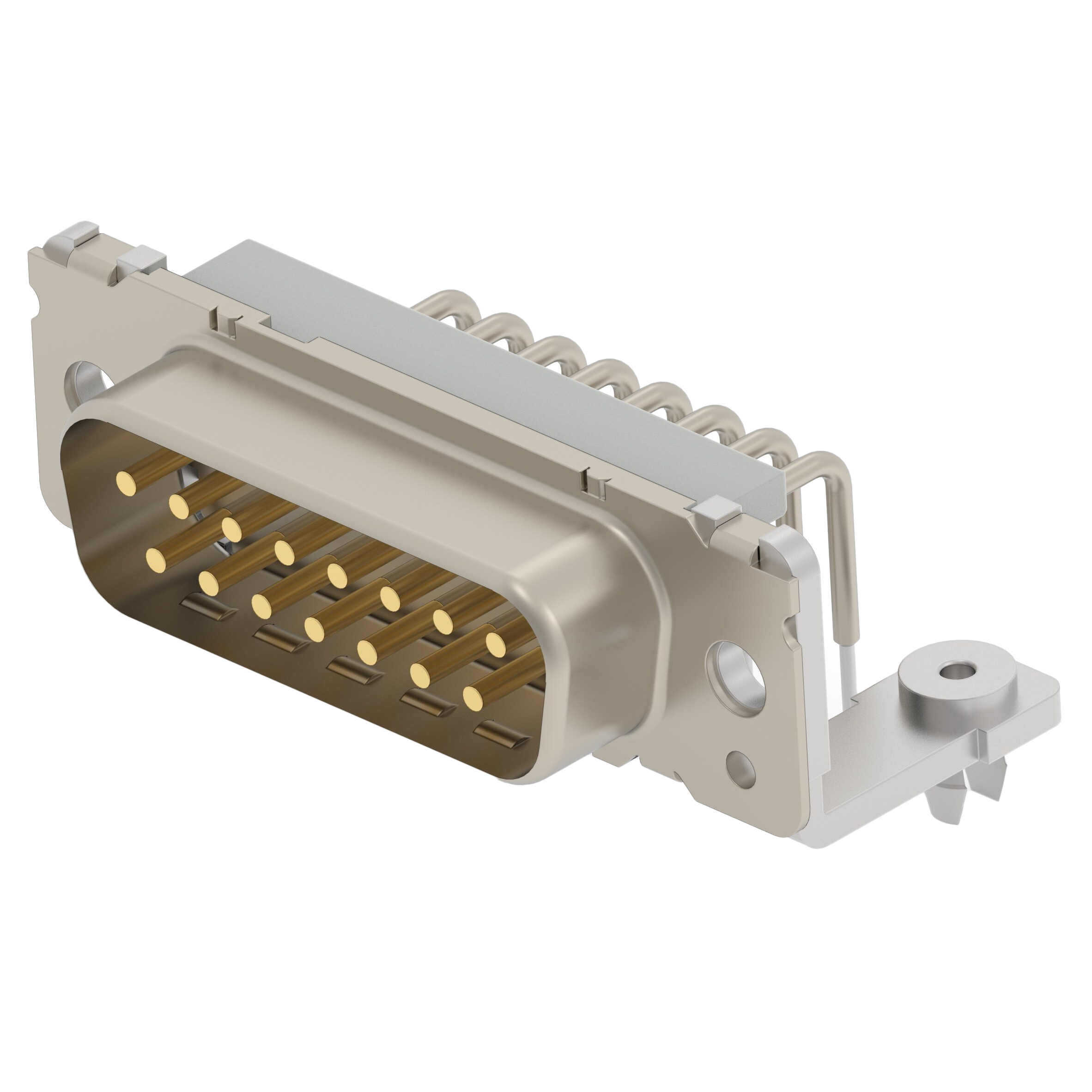

4-1393479-4
CONN D-SUB PLUG 15POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors AMPLIMITE HD-20 series D-Sub plug connector, part number 4-1393479-4. This 15-position, right-angle solder connector features male pins for signal applications. It is designed with grounding indents and a housing/shell flange for 4-40 mounting hardware. The contact finish is gold, ensuring reliable connectivity. This component is commonly utilized in industrial automation, telecommunications, and computing systems. Supplied in bulk packaging.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
| Shell Material, Finish | - |
| Shell Size, Connector Layout | 2 (DA, A) |
| Backset Spacing | - |
