3-1634583-2
CONN D-SUB PLUG 37POS R/A SLDRManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

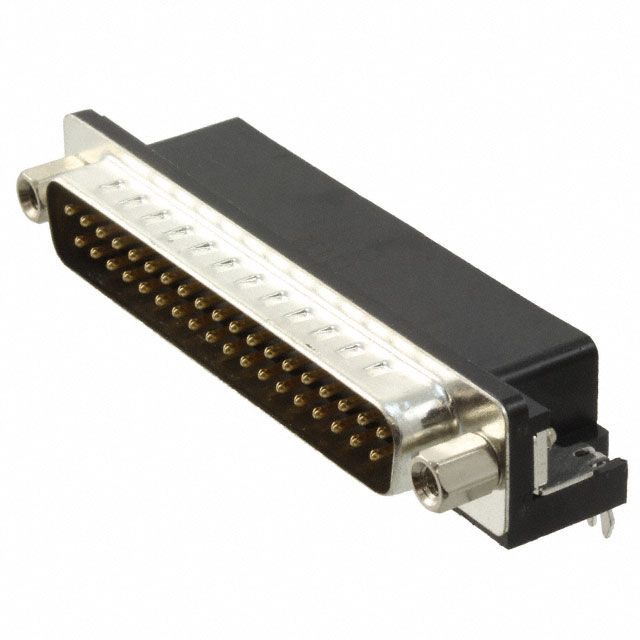

TE Connectivity AMP Connectors AMPLIMITE HD-20 series 3-1634583-2 is a 37-position D-Sub plug connector with male pins. This right-angle, through-hole mounted component features a solder termination and a gold contact finish with a thickness of 15.0µin (0.38µm). The connector offers a 5A current rating and includes board lock and grounding indent features. Its shell is constructed from nickel-plated steel, with a shell size of 4 (DC, C) and a backset spacing of 0.411" (10.43mm). The mating side of the flange incorporates female screwlock (4-40) functionality. This component is commonly utilized in industrial automation, telecommunications, and data acquisition systems. It is supplied in bulk packaging.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 4 (DC, C) |
| Backset Spacing | 0.411"" (10.43mm) |
