3-1393481-2

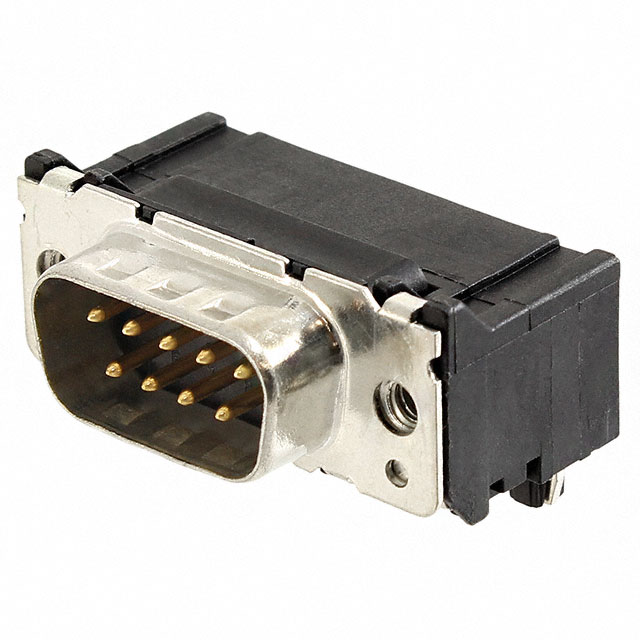

CONN D-SUB PLUG 9P R/A PRESSFITManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors AMPLIMITE HD-20 Series 3-1393481-2 is a 9-position D-Sub plug connector with male pins. This right-angle, through-hole mounted component features a press-fit termination and a standard DE (E) shell size. The contacts are gold-plated with a thickness of 30.0µin for enhanced conductivity and durability, designed for signal applications. Key features include board lock functionality and grounding indents for secure mounting and EMI shielding. The connector's backset spacing is 0.411" (10.43mm). The tin-plated steel shell contributes to robust housing. This component is suitable for industrial automation, telecommunications, and data acquisition systems. Material flammability is rated UL94 V-0.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Press-Fit |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | 0.411"" (10.43mm) |
