CONN D-SUB RCPT 9P R/A PRESSFITManufacturer: TE Connectivity AMP Connectors
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

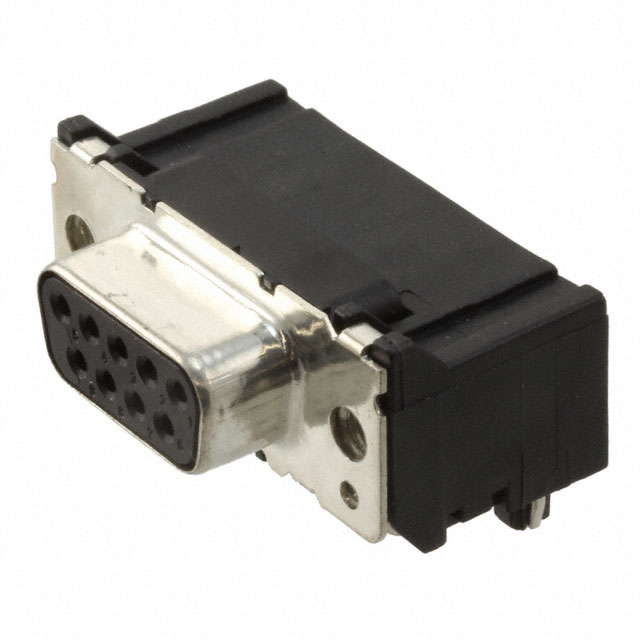

TE Connectivity AMP Connectors AMPLIMITE HD-20 series D-Sub receptacle, part number 2-1393481-9. This 9-position, 2-row right-angle receptacle features female signal sockets with a gold contact finish, 30.0µin (0.76µm) thickness. The connector offers a press-fit termination and a backset spacing of 0.411" (10.43mm). It includes a board lock feature for enhanced mounting stability and a steel, tin-plated shell with a 4-40 flange. The material has a UL94 V-0 flammability rating. Commonly utilized in industrial automation, telecommunications, and medical equipment.
Additional Information
Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Press-Fit |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | 0.411"" (10.43mm) |
