1734355-1

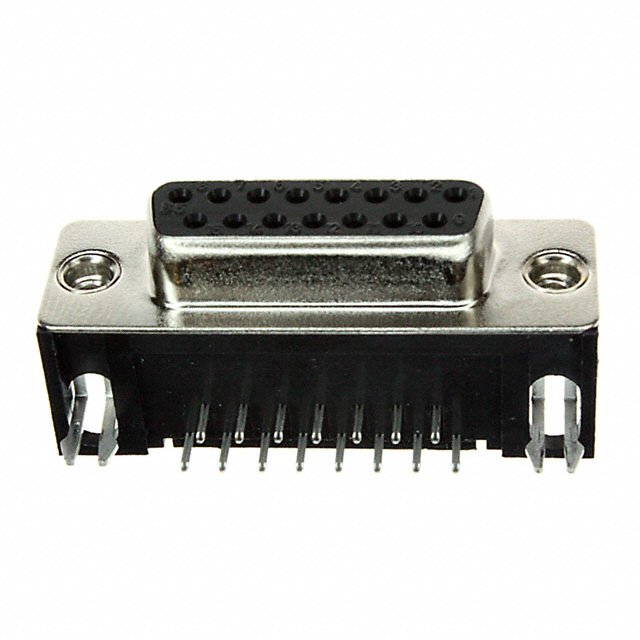

CONN D-SUB RCPT 15POS R/A SLDR

Manufacturer: TE Connectivity AMP Connectors

Categories: D-Sub Connector Assemblies

Quality Control: Learn More

TE Connectivity AMP Connectors AMPLIMITE HD-20 series 1734355-1 is a 15-position, right-angle D-Sub receptacle featuring female signal sockets. This component utilizes a solder termination method with a gold contact finish, plated to a thickness of FLASH, and offers a current rating of 2A. The connector provides a backset spacing of 0.318 inches (8.08mm) and includes a board lock feature for secure mounting. The steel shell is nickel-plated and designed with a flange for 4-40 screw mounting. Its UL94 V-0 material flammability rating ensures compliance in demanding applications. This receptacle is commonly found in industrial automation, data communication, and telecommunications equipment.

Additional Information

Series: AMPLIMITE HD-20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:
Technical Details:
FeaturesBoard Lock
PackagingTray
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Current Rating (Amps)2A
Mounting TypeThrough Hole, Right Angle
Number of Positions15
Number of Rows2
Contact TypeSignal
Flange FeatureHousing/Shell (4-40)
TerminationSolder
Ingress Protection-
Connector StyleD-Sub
Contact Finish ThicknessFLASH
Material Flammability RatingUL94 V-0
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector Layout2 (DA, A)
Backset Spacing0.318"" (8.08mm)
