8-5227079-1
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

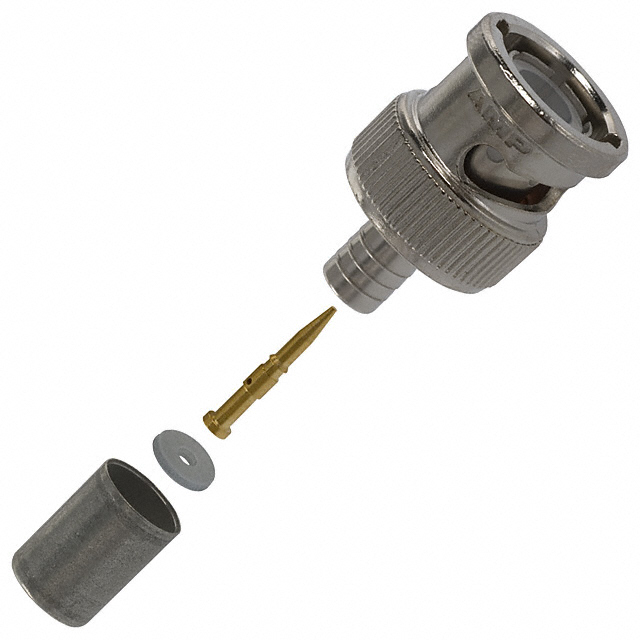

TE Connectivity AMP Connectors 8-5227079-1 is a BNC coaxial connector plug designed for robust RF signal transmission. This male pin connector features a 50 Ohm impedance and a bayonet lock fastening type for secure mating. It terminates to cables via a crimp connection for both the center conductor and shield. The connector is compatible with cable groups RG-59, 59A, 59B, 62, 62A, and 62B, utilizing brass for the center contact. Operating up to a maximum frequency of 4 GHz, this component is suitable for applications in broadcast, telecommunications, and test and measurement equipment. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, 59A, 59B, 62, 62A, 62B |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
