6-1337580-0
CONN MCX PLUG STR 50 OHM SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors presents the Greenpar series MCX plug, part number 6-1337580-0. This straight, 50 Ohm coaxial connector features a male pin and is designed for solder termination. Engineered for free-hanging (in-line) applications, it offers a snap-on fastening type for secure connection. The center contact is constructed from brass, and the connector is suitable for cable groups including RG-174, RG-188, and RG-316. Operating up to a maximum frequency of 6 GHz, this component finds application in telecommunications and test and measurement equipment. The shield termination is achieved via crimp.
Additional Information
Series: GreenparRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-174, 188, 316 |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | MCX |
| Mounting Feature | - |
| Housing Color | Gold |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
Request a Quote
Clients Also Buy
1-1337413-0
CONN N PLUG R/A 50 OHM SOLDER

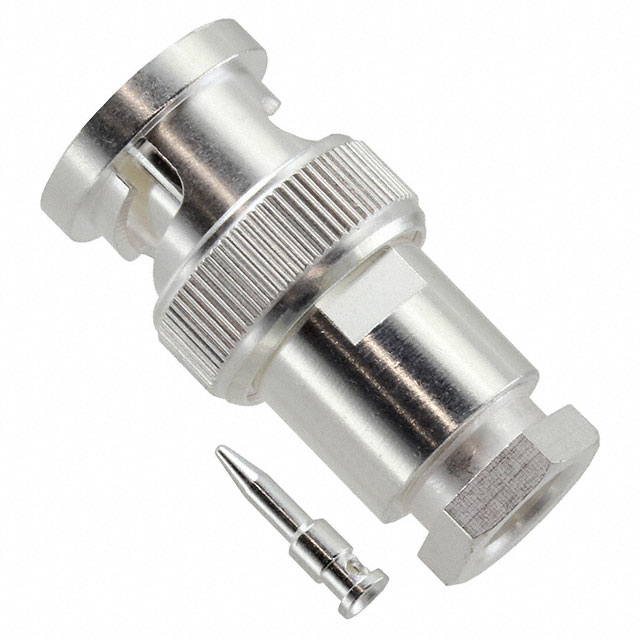

1-1337422-0
CONN BNC PLUG STR 75 OHM SOLDER

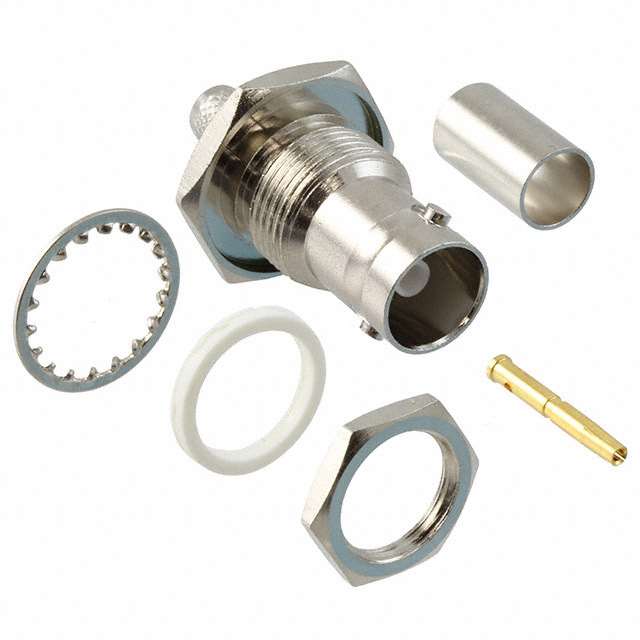

1-1337435-0
