5415373-1
CONN BNC JACK R/A 75 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

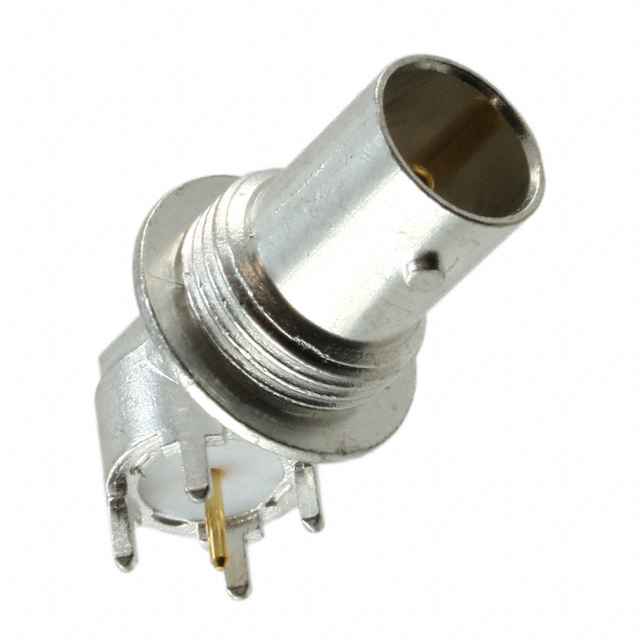

TE Connectivity AMP Connectors BNC Jack, Right Angle, 75 Ohm, PCB mount. This coaxial connector, part number 5415373-1, features a female socket with a bayonet lock fastening type and a solder termination for both the center contact and shield. Designed for panel mounting with a bulkhead-front-side nut feature, it offers a through-hole, right-angle orientation. The center contact is constructed from Beryllium Copper, and the housing is silver. Operating up to a maximum frequency of 2 GHz, this component is suitable for applications in broadcasting, telecommunications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
