5415085-1

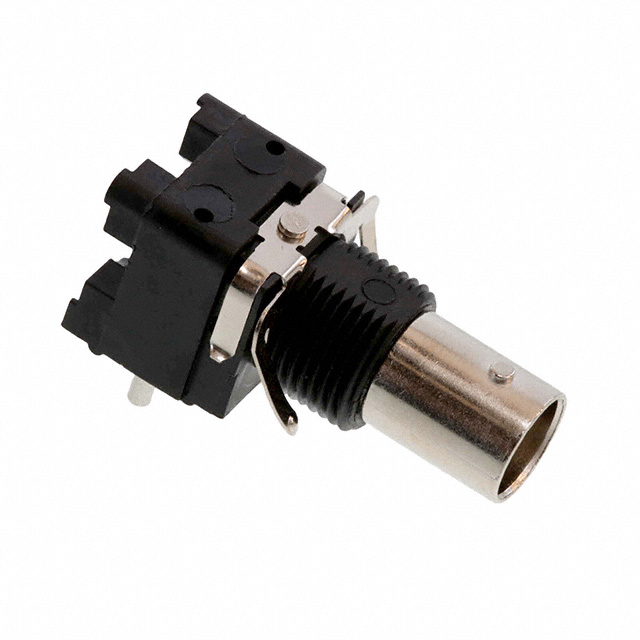

CONN BNC JACK R/A 75 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors 5415085-1 is a BNC coaxial connector, a female socket type with a 75 Ohm impedance. This right-angle, panel-mount connector features through-hole termination and is designed for solder connection. The center contact is constructed from phosphor bronze, ensuring reliable signal integrity. Key features include a bayonet lock for secure mating, a board guide for precise PCB placement, and integrated filtering for signal conditioning. This component is suitable for applications demanding robust RF performance up to 1 GHz, commonly found in broadcast video, test and measurement equipment, and telecommunications infrastructure. The unit is packaged in a tube for efficient handling and integration into automated assembly processes.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Filter, Isolated |
| Packaging | Tube |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Black, Silver |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
