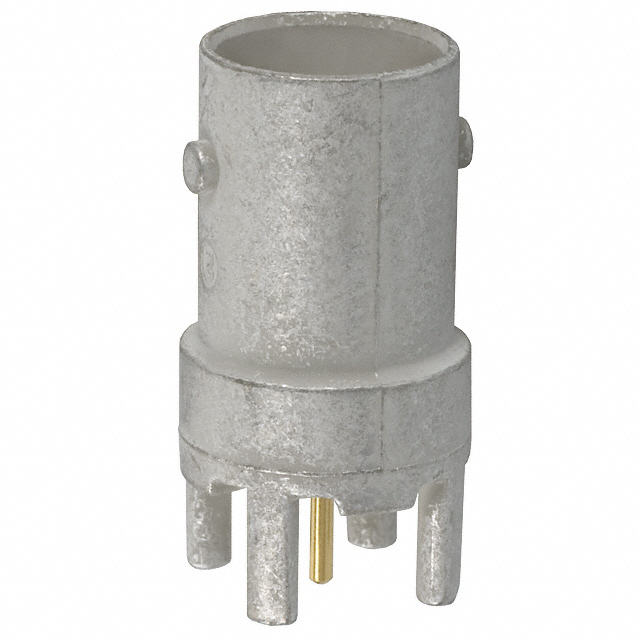

5414394-1
CONN BNC JACK STR 75 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors BNC Jack, 5414394-1, is a 75 Ohm coaxial connector designed for PCB mounting. This through-hole, solder termination component features a female socket with a bayonet lock fastening mechanism. The center contact is constructed from phosphor bronze, ensuring reliable signal integrity up to a maximum frequency of 2 GHz. Ideal for applications requiring robust impedance matching and secure connectivity in broadcast, telecommunications, and test and measurement equipment, this connector is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
