5414094-2

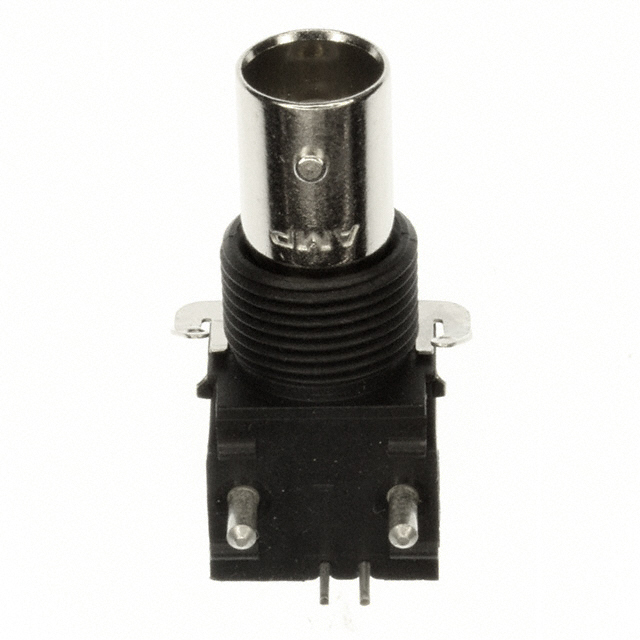

CONN BNC JACK R/A 75 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors 5414094-2 is a BNC connector jack designed for 75 Ohm impedance applications. This right-angle, panel-mount component features a through-hole termination style with solder contact termination. The center contact is constructed from phosphor bronze, and the connector utilizes a bayonet lock fastening type. Key features include a board guide and filter, contributing to signal integrity. Rated for a maximum frequency of 1 GHz, this connector is suitable for robust signal transmission in broadcast video, test and measurement equipment, and telecommunications infrastructure. The mounting is designed for bulkhead installation with a front-side nut.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Filter, Isolated |
| Packaging | Tube |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Black, Silver |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
