5413590-3
CONN BNC JACK STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

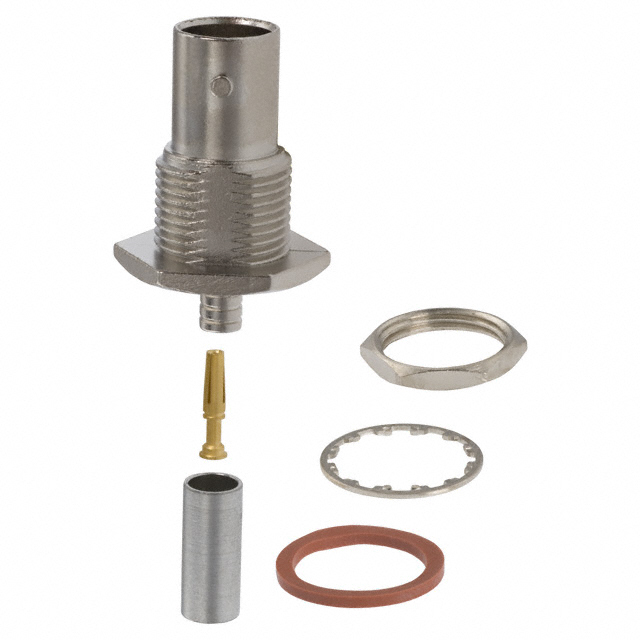

TE Connectivity AMP Connectors BNC Jack, 5413590-3, is a female socket coaxial connector designed for 75 Ohm impedance applications up to 2 GHz. This panel mount connector features a bayonet lock fastening type for secure mating and a bulkhead mounting style with front side nut. The center contact is constructed from Beryllium Copper, ensuring reliable signal integrity. Shield termination is achieved via a crimp connection, compatible with cable groups such as Belden 8218. This component is commonly utilized in broadcast, telecommunications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | Belden 8218 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
Request a Quote
