CONN BNC JACK STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

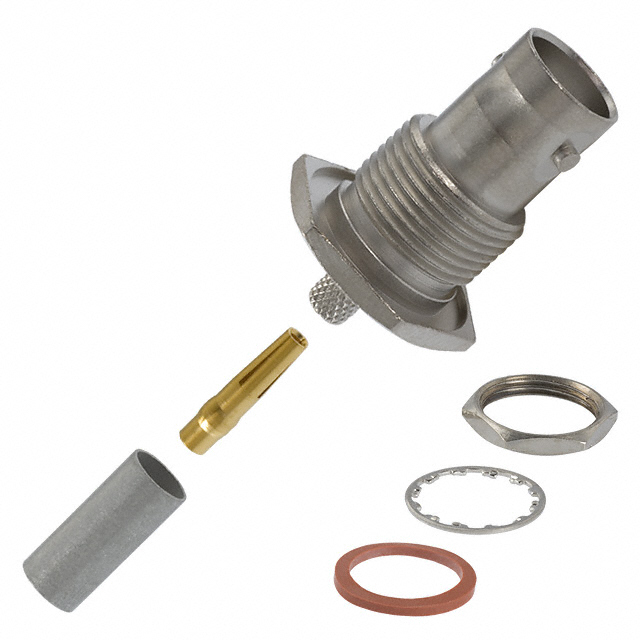

TE Connectivity AMP Connectors 5225398-3 is a BNC female jack connector designed for coaxial applications. This panel mount, bulkhead-style connector features a bayonet lock fastening and a 50 Ohm impedance. The center contact is constructed from Beryllium Copper for reliable signal integrity. Termination for both the shield and center contact is achieved via crimp. This component supports a maximum frequency of 4 GHz and is suitable for use with cable groups including RG-55, RG-55A, RG-55B, and RG-223. Its robust construction and performance characteristics make it a valuable component in test and measurement equipment, broadcast systems, and telecommunications infrastructure. The connector is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-55, 55A, 55B, 223 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
