5225395-3
CONN BNC PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

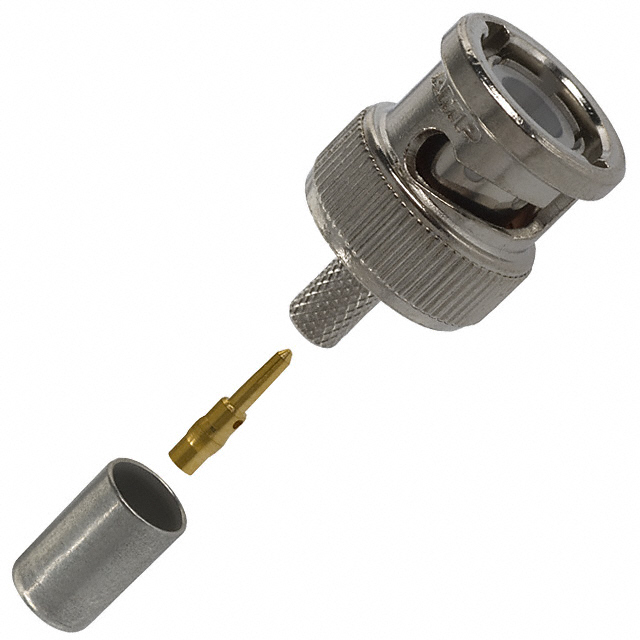

TE Connectivity AMP Connectors presents the 5225395-3, a BNC connector plug with a male pin and a 50 Ohm impedance. This free-hanging (in-line) component utilizes a bayonet lock for secure mating and features a crimp termination for both the center contact and shield. Designed for RF applications, it supports a maximum frequency of 4 GHz and is compatible with cable groups RG-55, RG-55A, RG-55B, and RG-223. The center contact is constructed from brass, with a silver housing color. This component is widely used in telecommunications, broadcast, and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-55, 55A, 55B, 223 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
