5225361-1
CONN N PLUG STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

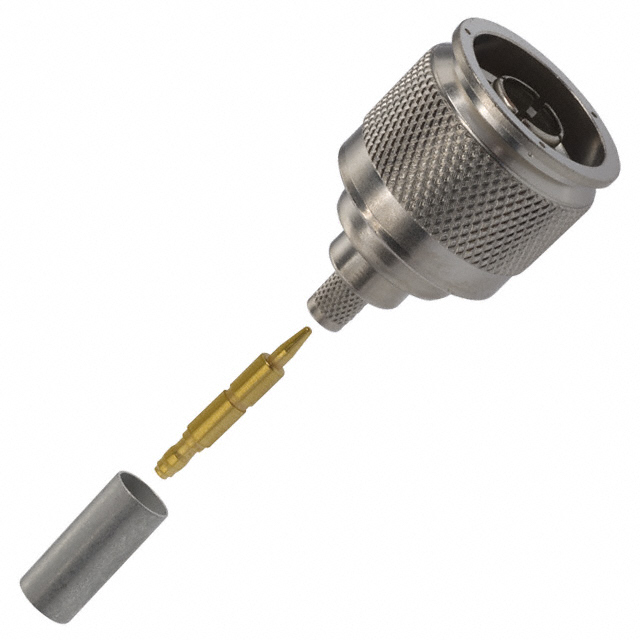

TE Connectivity AMP Connectors N Type Plug, Male Pin RF coaxial connector, part number 5225361-1. This free-hanging (in-line) connector features a 50 Ohm impedance and a maximum frequency of 11 GHz. Designed for RG-58A and 58C cables, it utilizes a crimp termination for both the contact and shield. The threaded fastening type ensures secure mating. This component is commonly found in telecommunications and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58A, 58C |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | N Type |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | - |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
