5221199-2
CONN BNC JACK STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

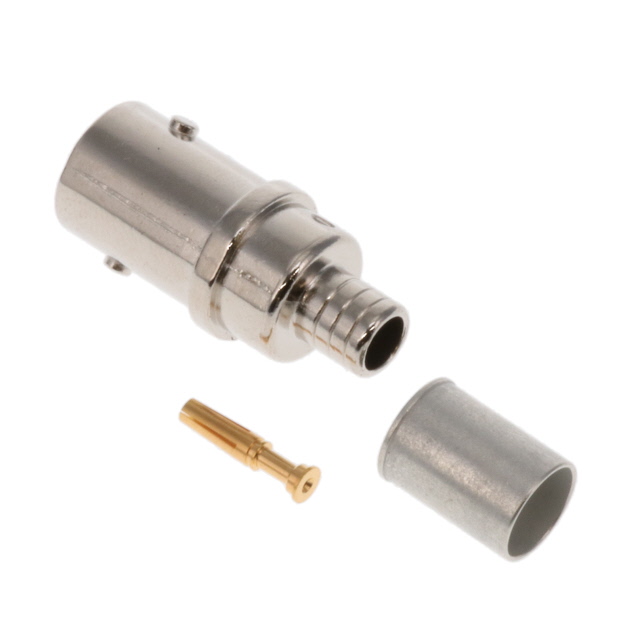

TE Connectivity AMP Connectors BNC Jack, 5221199-2, is a 75 Ohm coaxial connector designed for reliable signal transmission. This female socket, free-hanging component utilizes a bayonet lock for secure mating and features a crimp termination for both the center contact and shield. Engineered for RG-59, 59A, and 59B cable groups, it operates at a maximum frequency of 2 GHz. The beryllium copper center contact ensures excellent conductivity. This connector is suitable for applications in broadcasting, telecommunications, and test and measurement equipment where stable 75 Ohm impedance is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, 59A, 59B |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
