5221185-7
CONN BNC PLUG STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

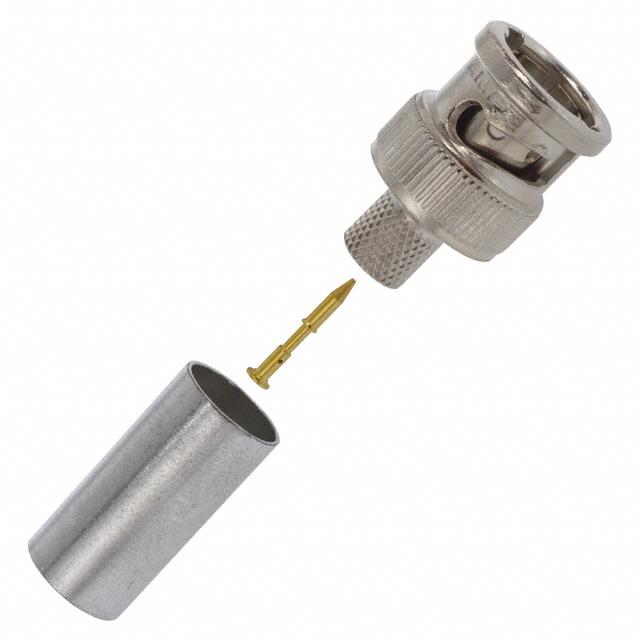

TE Connectivity AMP Connectors 5221185-7 is a BNC connector plug with a straight male pin configuration, designed for 75 Ohm impedance applications. This free-hanging (in-line) component utilizes a bayonet lock for secure mating and features a crimp termination for both the contact and shield. The center contact is constructed from brass, ensuring reliable signal transfer. Rated for a maximum frequency of 2 GHz, this connector is suitable for coaxial cable groups RG-6 and 6A. Its robust design and 75 Ohm impedance make it a common choice in broadcast and telecommunications infrastructure. The housing color is silver.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-6, 6A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
