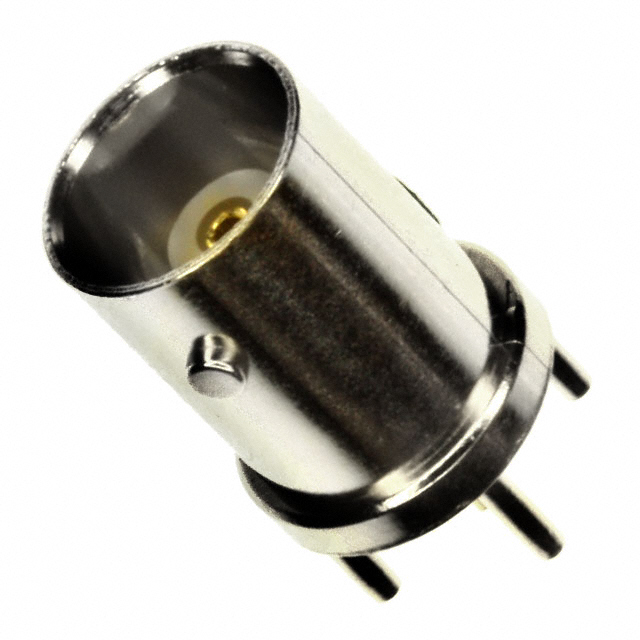

5-1634503-1
CONN BNC JACK STR 50 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors ZDC, Greenpar series 5-1634503-1 is a BNC jack connector designed for high-frequency RF applications up to 4 GHz. This female socket connector features a 50 Ohm impedance and a robust bayonet lock fastening mechanism. The center contact is constructed from phosphor bronze for reliable conductivity, and termination is achieved via solder. Mounting is facilitated through a through-hole design, suitable for PCB integration. This component is commonly utilized in test and measurement equipment, broadcast systems, and telecommunications infrastructure.
Additional Information
Series: ZDC, GreenparRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Cable Group | - |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
Request a Quote
Clients Also Buy
5-1634500-0
CONN BNC PLUG STR 50 OHM CRIMP
5-1634511-1
BNC STR JK HEX 50OHM NICKEL PLTD

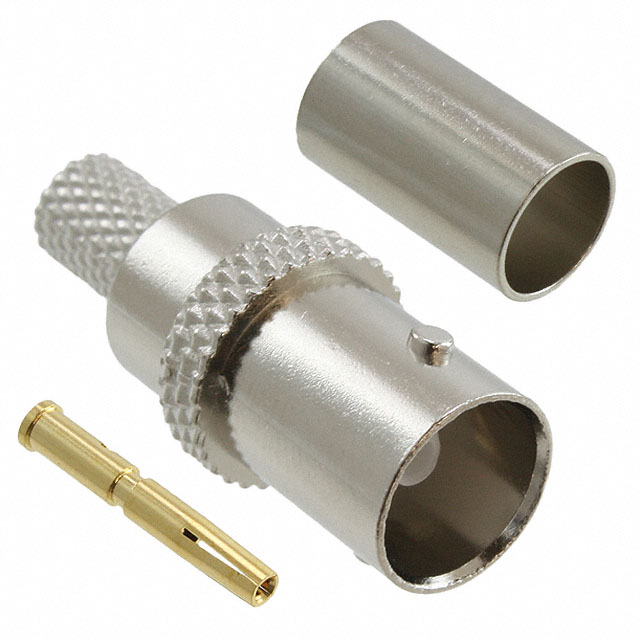

5-1634514-1
