413760-9
CONN BNC JACK STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

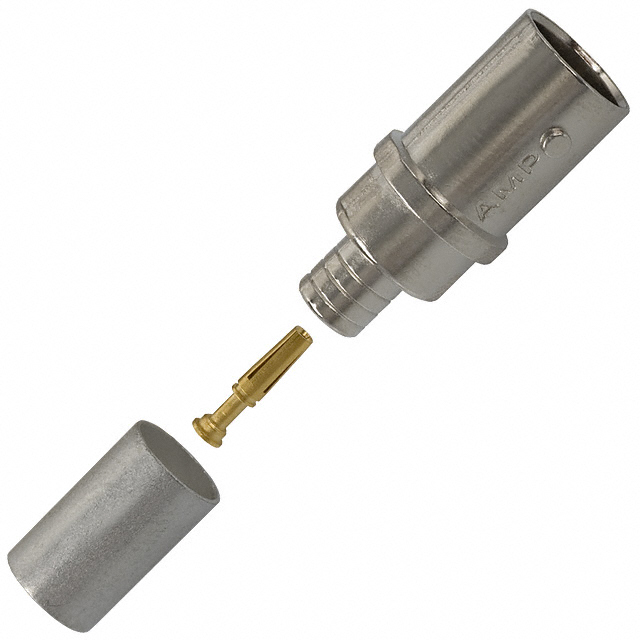

TE Connectivity AMP Connectors 413760-9 is a BNC jack, female socket connector designed for 75 Ohm impedance applications. This straight, free-hanging (in-line) connector utilizes a bayonet lock for secure mating and features a crimp termination for both the center contact and shield. The center contact is constructed from Beryllium Copper for reliable conductivity. This component is suitable for use with cable groups including RG-59, Belden 9240, 9259, and 9266, and operates at a maximum frequency of 2 GHz. Applications span industries requiring robust coaxial connections, such as broadcast, telecommunications, and test and measurement equipment. The connector housing is silver in color and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, Belden 9240, 9259, 9266 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
