413589-9
CONN BNC PLUG STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

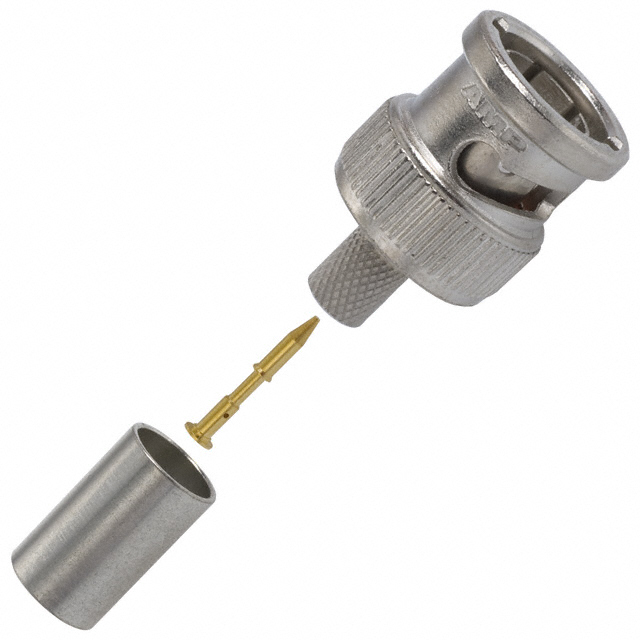

TE Connectivity AMP Connectors 413589-9 is a BNC coaxial connector plug, designed for 75 Ohm impedance applications. This male pin connector features a bayonet lock fastening type and a free hanging (in-line) mounting style. It is suitable for terminating RG-59 and compatible cable groups such as Belden 9240, 9259, and 9266 using a crimp termination method for both the signal and shield. The center contact is constructed from brass, and the connector operates up to a maximum frequency of 2 GHz. This component is commonly utilized in broadcast, telecommunications, and test and measurement equipment. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, Belden 9240, 9259, 9266 |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
