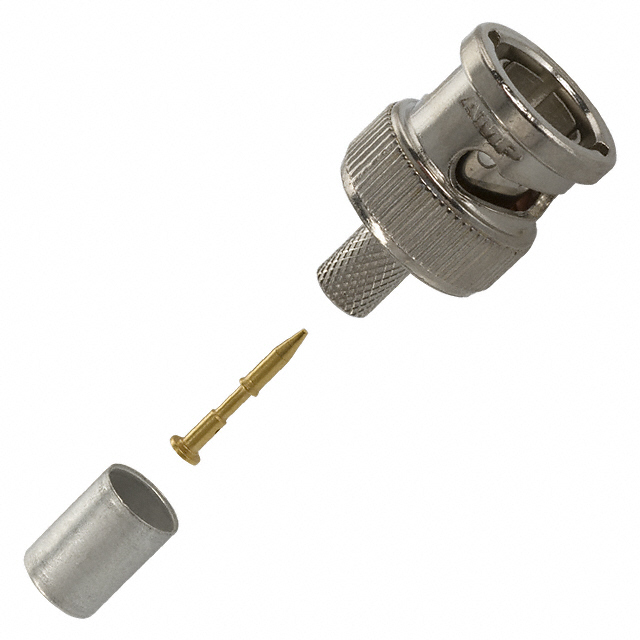

413589-2
CONN BNC PLUG STR 75 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors presents the 413589-2, a BNC coaxial connector plug designed for 75 Ohm impedance applications. This male pin configuration features a straight, free-hanging (in-line) mounting style and utilizes a reliable bayonet lock for secure mating. The center contact is constructed from durable beryllium copper, ensuring consistent signal integrity. Designed for crimp termination, this connector is compatible with RG-59, 59A, and 59B series coaxial cables, supporting frequencies up to 2 GHz. Its silver housing provides a classic aesthetic. This reliable component finds application in broadcast, test and measurement, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59, 59A, 59B |
| Fastening Type | Bayonet Lock |
| Ingress Protection | - |
| Connector Style | BNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
