3-227000-4
CONN TNC PLUG STR 50OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

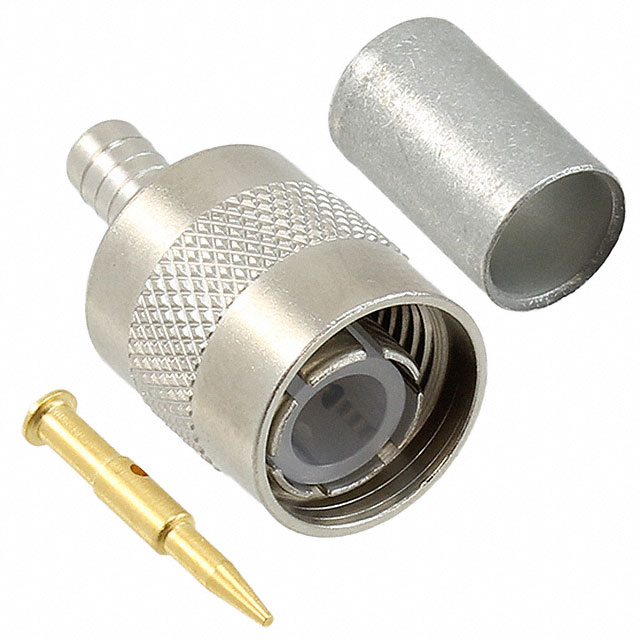

TE Connectivity AMP Connectors TNC Plug, part number 3-227000-4, is a coaxial RF connector designed for 50 Ohm impedance applications. This straight plug features a male pin configuration with a threaded fastening type and is intended for free-hanging, in-line mounting. The center contact is constructed from brass, and the contact termination method is crimp. This component is compatible with cable groups RG-58, 58A, 58B, and 58C, with a maximum operating frequency of 7 GHz. It is supplied in bulk packaging and is utilized in various industries requiring reliable RF signal transmission.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58, 58A, 58B, 58C |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | TNC |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Frequency - Max | 7 GHz |
| Number of Ports | 1 |
