228435-1
CONN SMB JACK R/A 50 OHM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

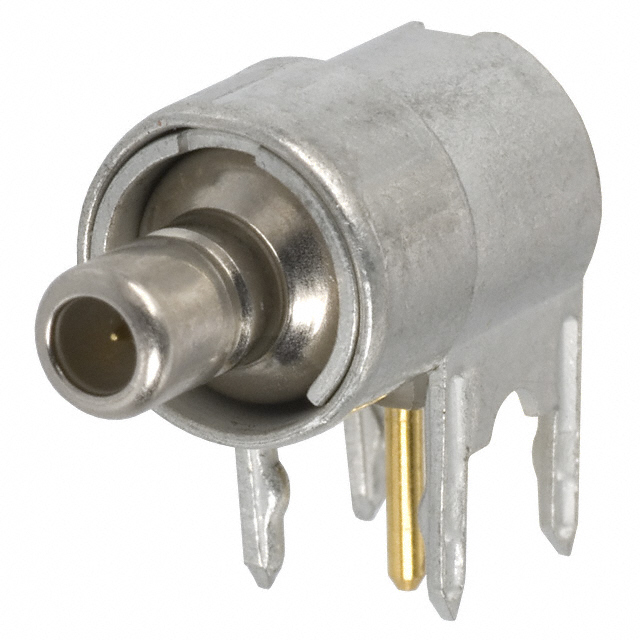

TE Connectivity AMP Connectors SMB Jack, Right Angle, 50 Ohm, Through Hole for PCB mounting. This RF coaxial connector features a male pin contact termination via solder. Designed for high-frequency applications up to 4 GHz, its snap-on fastening type ensures secure mating. The brass center contact material and silver housing contribute to reliable signal integrity. Ideal for use in telecommunications, test and measurement, and other RF system designs requiring robust and efficient signal transmission.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Cable Group | - |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | SMB |
| Mounting Feature | - |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
