228217-1
CONN SMB JACK STR 50 OHM CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

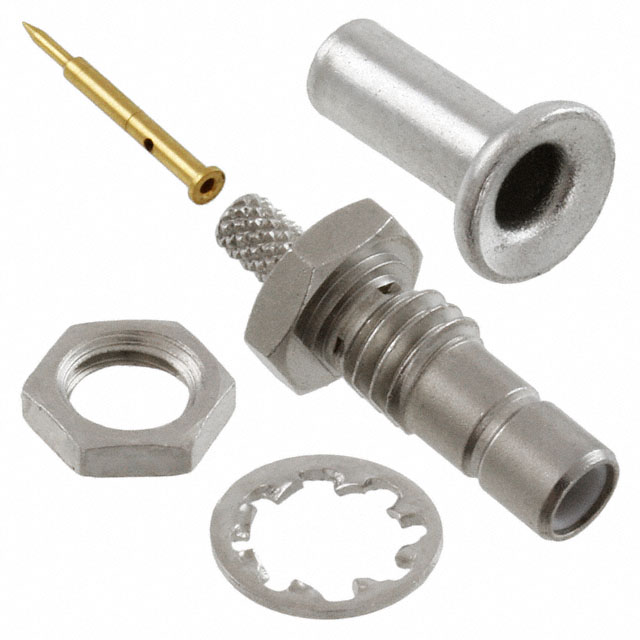

TE Connectivity AMP Connectors SMB Connector Jack, Male Pin, 50 Ohms, for RG-174, 188, 316 coaxial cable. This panel mount connector features a snap-on fastening type and bulkhead mounting with a front side nut. Designed for crimp termination of both the center contact and shield, it operates up to 4 GHz. The silver housing and robust construction make it suitable for applications in telecommunications, test and measurement, and medical equipment. This component, part number 228217-1, is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | RG-174, 188, 316 |
| Fastening Type | Snap-On |
| Ingress Protection | - |
| Connector Style | SMB |
| Mounting Feature | Bulkhead - Front Side Nut |
| Housing Color | Silver |
| Shield Termination | Crimp |
| Center Contact Material | - |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
